![Example of a 2D Column Chart on a form with a button that can be clicked to run the code listed below to export the Chart.](Images/Chart_Export_to_PDF.png)
This topic shows how you can export your chart to a PDF file or an XPS file.

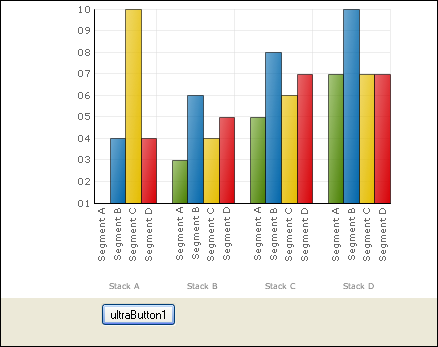

When you save and run your application after completing the following steps, your chart should look similar to the following image:
To export your chart to PDF:
From the components tab, drag an UltraButton to your form.
In the Click event handler of the button, add the following example code.
In Visual Basic:
Me.UltraChart1.Data.DataSource = GetStackColumnData() Me.UltraChart1.Data.DataBind() Dim r As New Infragistics.Documents.Report.Report() Dim g As Graphics = r.AddSection().AddCanvas().CreateGraphics() UltraChart1.RenderPdfFriendlyGraphics(g) ' define a string that contains the path to ' the current user's My Documents folder. Dim myDocuments As String = _ System.Environment.GetFolderPath( _ System.Environment.SpecialFolder.MyDocuments) ' Publish the report to the current user's ' My Documents folder with the name of Report.pdf. r.Publish(myDocuments + "\Report.pdf", FileFormat.PDF) System.Diagnostics.Process.Start((myDocuments + "\Report.pdf"))
In C#:
this.ultraChart1.Data.DataSource = GetStackColumnData(); this.ultraChart1.Data.DataBind(); //Create a new report Infragistics.Documents.Report.Report r = new Infragistics.Documents.Report.Report(); Graphics g = r.AddSection().AddCanvas().CreateGraphics(); ultraChart1.RenderPdfFriendlyGraphics(g); //Define a string that contains the path to // the current user's My Documents folder. string myDocuments = System.Environment.GetFolderPath(System.Environment.SpecialFolder.MyDocuments); // Publish the report to the current user's // My Documents folder with the name of Report.pdf. r.Publish(myDocuments + "\\Report.pdf", FileFormat.PDF);
Save and run your application
