Test Automation capabilities of the WinLiveTileView™ control including record, replay, and property verification.
Interacting with the Expand/Collapse button are recorded as AtLocation(“ExpandCollapse”)
sub-item.
TileViewPanel().Click(AtLocation("ExpandCollapse"))
User interactions with the horizontal scroll bar are recorded as standard scroll location sub-item as following:
TileViewPanel().Click(SCROLL_LEFTBUTTON)
TileViewPanel().Click(SCROLL_LEFT)
TileViewPanel().Click(SCROLL_RIGHT)
TileViewPanel().Click(SCROLL_RIGHTBUTTON)
TileViewPanel().Click(SCROLL_HORIZONTAL_ELEVATOR)
Use the following format to identify groups within the control for record and replay purposes
AtList(AtLocation(“Group”), AtIndex([group index])
The format applies to either a collapsed group or the header of an expanded group
For example, the following script performs a click action at the third group (using zero-based index AtIndex(2)
) if it is collapsed, otherwise it clicks on the group header area, and then right-clicking on the Fifth (using zero-based index AtIndex(4)
) group:
TileViewPanel().Click(AtList(AtLocation("Group"), AtIndex(2)))
TileViewPanel().Click(AtList(RIGHT, AtLocation("Group"), AtIndex(4)))
The following format is used to identify tiles:
AtList(AtLocation(“[TileType]”), AtIndex([group index], AtIndex([Tile Index within the group])
“Tile type” could be “Static Tile” or “Live Tile”.
For example the following script performs a right-click action at the fifth tile in the first group, while this happens to be a live tile for this example, it could just as easily be a static tile:
TileViewPanel().Click(RIGHT, AtList(AtLocation("LiveTile"), AtIndex(0), AtIndex(4)))
Tiles Properties:
Includes the Tile view’s groups and tiles structure along with the tiles’ properties within a group.
Test Automation capabilities of the WinRadialMenu™ control includes record, replay, and property verification.
Interacting with the center button, regardless of the state of the menu, will be recorded as AtLocation(“CenterButton”) Subitem
UltraRadialMenuFormToolBar().Click(AtLocation("CenterButton"))
User interactions with the Inner part of the wedge will be recorded using the tool text format such as:
UltraRadialMenuFormToolBar().Click(AtText("fonts"))
In case of multiple tools with the same text, tools are identified by a combination of text and instant zero-based Index for example if the Radial menu include 3 tools that have the text “Edit” then clicking on the third one will record as:
UltraRadialMenuFormToolBar().Click(AtText("Edit", 2))
For replay purpose, users can identify tools using:
tool key as “AtName”:
UltraRadialMenuFormToolBar().Click(AtName("fontTool"))
Visible index as “AtIndex”
:
UltraRadialMenuFormToolBar().Click(AtIndex(3))
User interaction on any tool drilldown button will be recorded as:
AtPath(“->Location(DropDown)”)
UltraRadialMenuFormToolBar().Click(AtList(AtIndex(1),DROPDOWN))
Clicking on the gauge track when the user sets the value of the numeric gauge tool the proxy records Click(AtValue([int]))
action as follow:
UltraRadialMenuFormToolBar().Click(AtValue(10))
When replayed, if the value is not valid (i.e., not within the specified range) the proxy will throw a ValueOutOfBoundsException
If the Radial menu does not display the numeric gauge tool, the action will generate an exception SubitemNotFoundException
Radial Menu Properties :
Includes properties on the radial menu, Center Tool, Menu Settings, and Tool Settings.
Radial Menu Tools :
Lists the visible radial menu’s tools in the current view along with their properties.
Use the GetValue
method, a replay only action, to retrieve the current value of the numeric tool returns an integer specifying the current value of the tool. The method generates an exception (SubitemNotFoundException
) if the radial menu does not show the numeric tool. If the value is not set, the method returns zero.
Void SetValue(int value)`A replay only action to set the current value of the numeric tool. The method will generate a `SubitemNotFoundException
if the radial menu does not show the numeric tool and ValueOutOfBoundsException
if the passed in value is not valid.
This section explains the changes made to the WinToolbarsManager™ control proxy for Windows Forms Test Automation 2013.2.

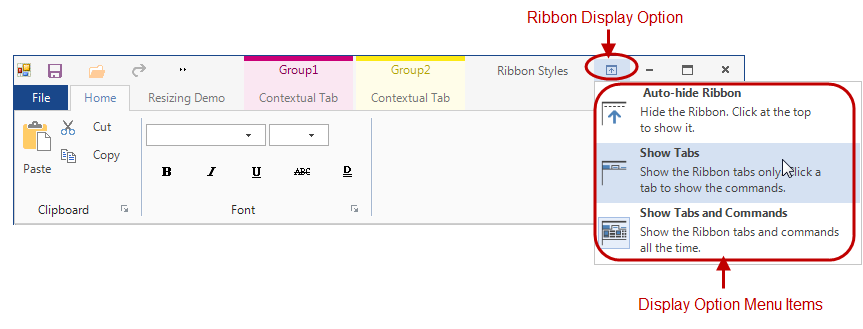

The Office 2013 Ribbon test automation supports new display options for ribbons using a dropdown button.
Auto-Hide Ribbon
Show Tabs
Show Tabs and Commands
PopupControlToolBar().Click(AtText("Auto-hide Ribbon"))
PopupControlToolBar().Click(AtText("Show Tabs"))
PopupControlToolBar().Click(AtText("Show Tabs and Commands"))
Added the following sub-items to the existing UltraToolbarsDockAreaProxy and PopupMenuControlProxy proxy:
Office2013RibbonForm_Toolbars().Click(AtLocation("RibbonAutoHideBar"))
Office2013RibbonForm_Toolbars().Click(AtLocation("Ribbon_DisplayOptions"))

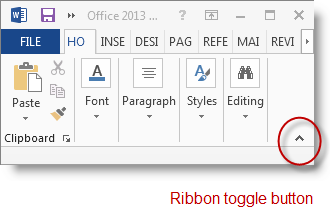

Office2013RibbonForm_Toolbars().Click(AtLocation("RibbonToggleButton"))
