Styling Points for xamDataChart

Topic Overview

Purpose

This topic provides designers styling points for the xamDataChart™ control.

Styling Points

xamDataChart properties

The following diagrams highlight the different controls used by the xamDataChart control. To re-style a particular item, first identify the TargetType in the diagram then identify the corresponding Style property/properties in the table that follows.

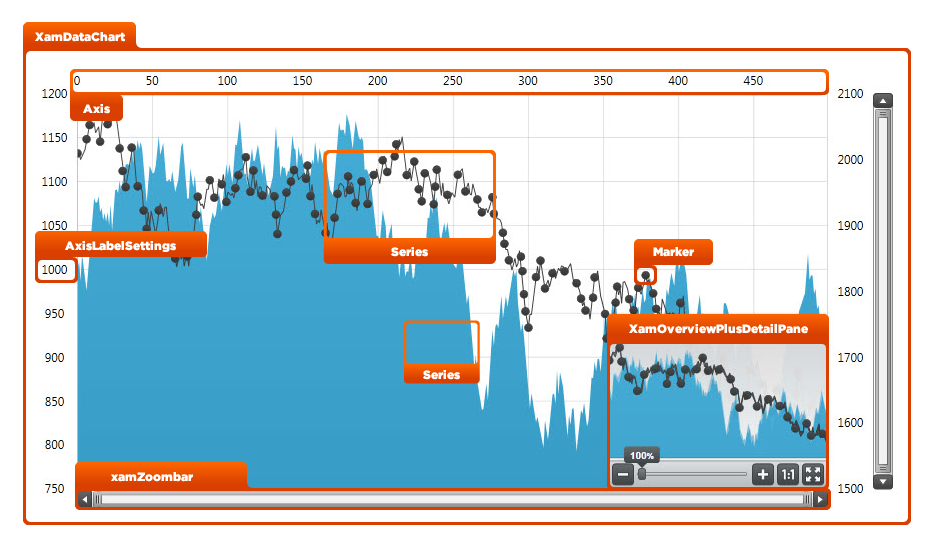

Designers Guide Styling Points for xamDataChart 1.png

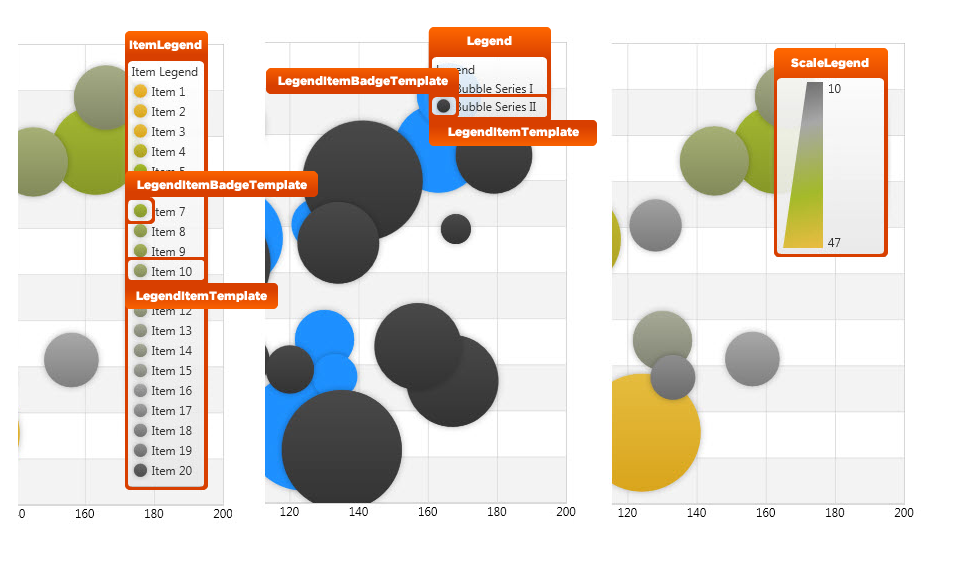

Designers Guide Styling Points for xamDataChart 2.png

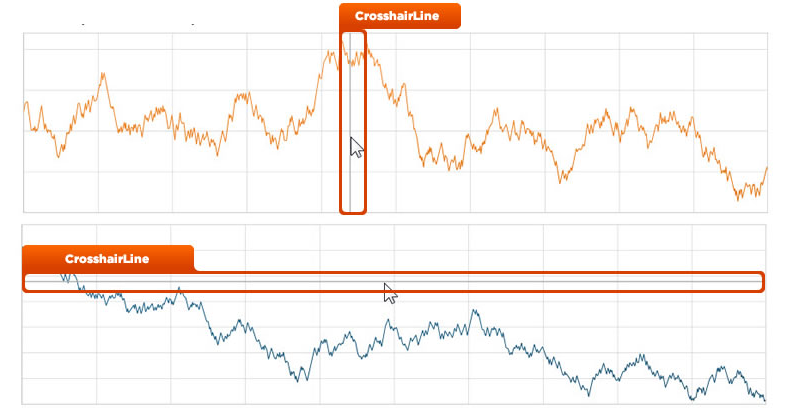

Designers Guide Styling Points for xamDataChart 3.png

The following table summarized properties for styling visual elements the xamDataChart control:

TargetType	Style Property	Description
xamDataChart	xamDataChart. Style	Specifies a style for the xamDataChart control.
xamZoombar	xamDataChart. ZoombarStyle	Specifies a style for the xamDataChart control’s zoombars.
xamOverviewPlusDetailPane	xamDataChart. OverviewPlusDetailPaneStyle	Specifies a style for the xamDataChart control’s chart overview pane.
Line	xamDataChart. CrosshairLineStyle	Specifies a style for the xamDataChart control’s crosshair.
Axis (All types of Axis)	xamDataChart. Axes[x]. Style	Specifies a style for the xamDataChart control’s axis.
AxisLabelSettings	xamDataChart. Axes[x]. LabelSettings	Specifies a style for label settings for an axis.
Series (All Types of Series) For example: AreaSeries ColumnSeries BarSeries StackedBarSeries Stacked100BarSeries BubbleSeries ScatterSeries PolarSplineSeries PolarScatterSeries RadialAreaSeries RadialPieSeries ValueOverlay FinancialPriceSeries MassIndexIndicator TypicalPriceIndicator	xamDataChart. Series[x]. Style xamDataChart. Series[x]. LegendItemTemplate xamDataChart. Series[x]. LegendItemBadgeTemplate	Specifies a style for a series in the xamDataChart control’s Series collection. Specifies a style for legend item and legend badge templates for a series in the xamDataChart control’s Series collection.
Marker	MarkerSeries. MarkerStyle (Applies to Series that inherits)	Specifies a style for markers of a series that inherits MarkerSeries class (for example, LineSeries).
Legend	Legend. Style	Specifies a style for the xamDataChart control’s Legend which is used with all types of Series objects.
ItemLegend	ItemLegend. Style	Specifies a style for the xamDataChart control’s ItemLegend which is used with BubbleSeries.
ScaleLegend	ScaleLegend. Style	Specifies a style for the xamDataChart control’s ScaleLegend which is used with BubbleSeries.
