Configuring Axis Title Offset

Purpose

This topic explains how to configure the title offset from its axis in the XamScatterSurface3D™ control.

Required background

The following topics are prerequisites to understanding this topic:

Topic Purpose

This topic provides detailed instructions to help you get up and running as soon as possible with the xamScatterSurface3D™ control.

This topic explains the features supported by the control from developer perspective.

This topic provides an overview of the visual elements of the control.

In this topic

This topic contains the following sections:

Configuring Axis Title Offset

Overview

Use the SurfaceChartAxis TitleOffset property to set the title offset from its axis.

Property settings

The following table maps the desired configuration to the property settings that manage it.

In order to: Use this property: And set it to:

Configure the title offset from its axis

double

Example

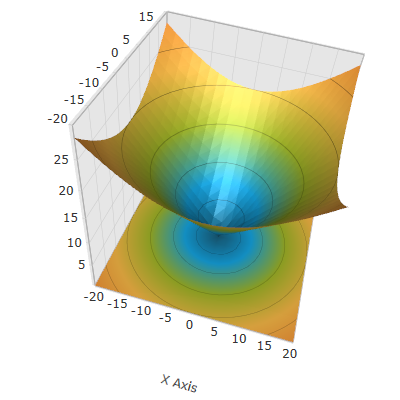

The screenshot below demonstrates how the axis title looks as a result of the following settings:

Property Value

0.4
Configuring Axis Title Offset 1.png

Following is the code that implements this example.

In XAML:

<ig:XamScatterSurface3D Name="SurfaceChart"
 ItemsSource="{Binding Path=DataCollection}"
 XMemberPath="X" YMemberPath="Y" ZMemberPath="Z" >
    <ig:XamScatterSurface3D.XAxis>
        <ig:LinearAxis Title="X Axis"
 TitleOffset="0.4" />
    </ig:XamScatterSurface3D.XAxis>
</ig:XamScatterSurface3D>

In C#:

var linearAxis = new LinearAxis();
linearAxis.Title = "X Axis";
linearAxis.TitleOffset = 0.4;
SurfaceChart.XAxis = linearAxis;

In Visual Basic:

Dim linearAxis = New LinearAxis()
linearAxis.Title = "X Axis"
linearAxis.TitleOffset = 0.4
SurfaceChart.XAxis = linearAxis
