Configuring Code 128

The XamCode128Barcode™ generates the high-density alpha-numeric variable-length Code 128 symbology. It allows encoding of all 256 standard ASCII characters as well as 4 special symbol characters- FNC1, FNC2, FNC3 and FNC4*:

  • FNC1 is used in UCC/EAN128 to act as UCC/EAN-128 identifier and field delimiter.

  • FNC2 is used to tell the barcode reader to store the data and transmit it with the next symbol.

  • FNC3 is reserved for future use.

  • FNC4 is used as a latch code word to switch into extended ASCII mode.

Note
Note:

The current version of XamCode128Barcode uses only FNC1. The control will be improved with the functions of the other special symbol characters in the next versions.

During the encoding process XamCode128Barcode internally uses 3 code sets (A, B and C) to generate the shortest possible symbol. Code 128 requires a mandatory checksum character to ensure the data integrity which is not represented in the human readable interpretation. Two Code 128 code symbologies are supported and specified by the CodeType property– Standard and Ucc (also known as UCC/EAN-128).

When CodeType is set to Ucc, the control checks internally if the Data consists of valid Application Identifier(s) with data content with an explicit format (see the table at the bottom). Each Application Identifier should be enclosed in parentheses.

Example:

xamBarcode XamCode128Barcode 03.png

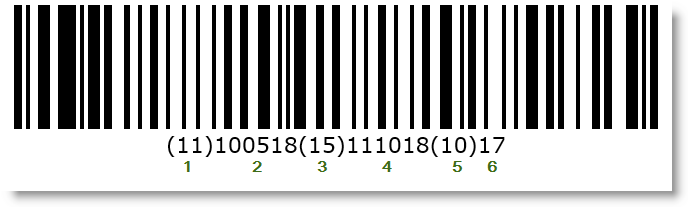

The XamCode128Barcode from the image has a Data property set to "(11)100518(15)111018(10)17".

Reading and extracting the Data from the example as follows:

  1. The AI (11) indicates that its data content should be 6 numerical digits and it is Production Date (YYMMDD);

  1. The value 100518 stands for May 18, 2010;

  1. The second AI - (15) indicates that the data content is Best Before Date (YYMMDD) and should be 6 numerical digits;

  1. The value 111018 stands for October 18, 2011;

  1. The last AI - (10) indicates that the data content is Batch or Lot Number. It should be up to 20 alphanumerical characters long;

  1. The value is 17.

For information about the supported Application Identifier(s) and the format of their corresponding data content see the table at the end of this topic.

Code Examples:

In XAML:

<ig:XamCode128Barcode x:Name="Barcode" CodeType="Standard" Data="Code 128" />

In Visual Basic:

Dim Barcode As New XamCode128Barcode()
Barcode.Data = "Code 128"
Barcode.CodeType = Code128CodeType.Standard

In C#:

XamCode128Barcode Barcode = new UltraCode128Barcode
Barcode.Data = "Code 128";
Barcode.CodeType = Code128CodeType.Standard;
xamBarcode XamCode128Barcode 01.png

In XAML:

<ig:XamCode128Barcode x:Name="Barcode" CodeType="Ucc" Data="(01)00653216546543" />

In Visual Basic:

Dim Barcode As New XamCode128Barcode()
Barcode.Data = "(01)00653216546543"
Barcode.CodeType = Code128CodeType.Ucc

In C#:

XamCode128Barcode Barcode = new XamCode128Barcode();
Barcode.Data = "(01)00653216546543";
Barcode.CodeType = Code128CodeType.Ucc;
xamBarcode XamCode128Barcode 02.png

In XAML:

<ig:XamCode128Barcode x:Name="Barcode" CodeType="Ucc" Data="(11)100518(15)111018(10)17" />

In Visual Basic:

Dim Barcode As New XamCode128Barcode()
Barcode.Data = "(11)100518(15)111018(10)17"
Barcode.CodeType = Code128CodeType.Ucc

In C#:

XamCode128Barcode Barcode = new XamCode128Barcode();
Barcode.Data = "(11)100518(15)111018(10)17";
Barcode.CodeType = Code128CodeType.Ucc;
images\xamBarcode Adding Code128 03.png

Application Identifiers

Notes:

(a): The following convention is applied:

n - numeric digit

an - any character

n3 - 3 numeric digits

n..3 - up to 3 numeric digits

an..3 - up to 3 characters

The first position of the Format field indicates the length (number of digits) of the Application Identifier. The following values refer to the format of the data content.

Example: n4+n14+an..16 - 4 numeric digits for the AI; 14 numeric digits and up to 16 alphanumeric characters for the data content.

(b): If only year and month are available for YYMMDD, DD must be filled with two zeroes.

(c): The implied point position is indicated by the fourth digit of this Application Identifier. Example:

3100 Net weight in kg without a decimal point;

3102 New weight in kg with two decimal points.

AI Data Content Format (a) Data Title

00

SSCC (Serial Shipping Container Code)

n2+n18

SSCC

01

Global Trade Item Number (GTIN)

n2+n14

GTIN

02

GTIN of Contained Trade Items

n2+n14

CONTENT

10

Batch or Lot Number

n2+an..20

BATCH/LOT

11 (b)

Production Date (YYMMDD)

n2+n6

PROD DATE

12 (b)

Due Date (YYMMDD)

n2+n6

DUE DATE

13 (b)

Packaging Date (YYMMDD)

n2+n6

PACK DATE

15 (b)

Best Before Date (YYMMDD)

n2+n6

BEST BEFORE or SELL BY

17 (b)

Expiration Date (YYMMDD)

n2+n6

USE BY OR EXPIRY

20

Variant Number

n2+n2

VARIANT

21

Serial Number

n2+an..20

SERIAL

22

Secondary Data Fields

n2+an..29

QTY /DATE /BATCH

240

Additional Item Identification

n3+an..30

ADDITIONAL ID

241

Customer Part Number

n3+an..30

CUST. PART NO.

242

Made-to-Order Variation Number

n3+n..6

MTO VARIANT

250

Secondary Serial Number

n3+an..30

SECONDARY SERIAL

251

Reference to Source Entity

n3+an..30

REF. TO SOURCE

253

Global Document Type Identifier (GDTI)

n3+n13+n..17

DOC. ID

254

GLN Extension Component

n3+an..20

GLN EXTENSION

30

Count of Items (Variable Measure Trade Item)

n2+n..8

VAR. COUNT

310 (c)

Net weight, kilograms (Variable Measure Trade Item)

n4+n6

NET WEIGHT (kg)

311 (c)

Length of first dimension, meters (Variable Measure Trade Item)

n4+n6

LENGTH (m)

312 (c)

Width, diameter, or second dimension, meters (Variable Measure Trade Item)

n4+n6

WIDTH (m)

313 (c)

Depth, thickness, height, or third dimension, meters (Variable Measure Trade Item)

n4+n6

HEIGHT (m)

314 (c)

Area, square meters (Variable Measure Trade Item)

n4+n6

AREA (m²)

315 (c)

Net volume, liters (Variable Measure Trade Item)

n4+n6

NET VOLUME (l)

316 (c)

Net volume, cubic meters (Variable Measure Trade Item)

n4+n6

NET VOLUME (m³)

320 (c)

Net weight, pounds (Variable Measure Trade Item)

n4+n6

NET WEIGHT (lb)

321 (c)

Length or first dimension, inches (Variable Measure Trade Item)

n4+n6

LENGTH (i)

322 (c)

Length or first dimension, feet (Variable Measure Trade Item)

n4+n6

LENGTH (f)

323 (c)

Length or first dimension, yards (Variable Measure Trade Item)

n4+n6

LENGTH (y)

324 (c)

Width, diameter, or second dimension, inches (Variable Measure Trade Item)

n4+n6

WIDTH (i)

325 (c)

Width, diameter, or second dimension, feet (Variable Measure Trade Item)

n4+n6

WIDTH (f)

326 (c)

Width, diameter, or second dimension, yards (Variable Measure Trade Item

n4+n6

WIDTH (y)

327 (c)

Depth, thickness, height, or third dimension, inches (Variable Measure Trade Item)

n4+n6

HEIGHT (i)

328 (c)

Depth, thickness, height, or third dimension, feet (Variable Measure Trade Item)

n4+n6

HEIGHT (f)

329 (c)

Depth, thickness, height, or third dimension, yards (Variable Measure Trade Item)

n4+n6

HEIGHT (y)

330 (c)

Logistic weight, kilograms

n4+n6

GROSS WEIGHT (kg)

331 (c)

Length or first dimension, meters

n4+n6

LENGTH (m), log

332 (c)

Width, diameter, or second dimension, meters

n4+n6

WIDTH (m), log

333 (c)

Depth, thickness, height, or third dimension, meters

n4+n6

HEIGHT (m), log

334 (c)

Area, square meters

n4+n6

AREA (m²), log

335 (c)

Logistic volume, liters

n4+n6

VOLUME (l), log

336 (c)

Logistic volume, cubic liters

n4+n6

VOLUME (m³), log

337 (c)

Kilograms per square meter

n4+n6

KG PER m²

340 (c)

Logistic weight, pounds

n4+n6

GROSS WEIGHT (lb)

341 (c)

Length or first dimension, inches

n4+n6

LENGTH (i), log

342 (c)

Length or first dimension, feet

n4+n6

LENGTH (f), log

343 (c)

Length or first dimension, yards

n4+n6

LENGTH (y), log

344 (c)

Width, diameter, or second dimension

n4+n6

WIDTH (i), log

345 (c)

Width, diameter, or second dimension

n4+n6

WIDTH (f), log

346 (c)

Width, diameter, or second dimension

n4+n6

WIDTH (y), log

347 (c)

Depth, thickness, height, or third dimension

n4+n6

HEIGHT (i), log

348 (c)

Depth, thickness, height, or third dimension

n4+n6

HEIGHT (f), log

349 (c)

Depth, thickness, height, or third dimension

n4+n6

HEIGHT (y), log

350 (c)

Area, square inches (Variable Measure Trade Item)

n4+n6

AREA (i²)

351 (c)

Area, square feet (Variable Measure Trade Item)

n4+n6

AREA (f²)

352 (c)

Area, square yards (Variable Measure Trade Item)

n4+n6

AREA (y²)

353 (c)

Area, square inches

n4+n6

AREA (i²), log

354 (c)

Area, square feet

n4+n6

AREA (f²), log

355 (c)

Area, square yards

n4+n6

AREA (y²), log

356 (c)

Net weight, troy ounces (Variable Measure Trade Item)

n4+n6

NET WEIGHT (t)

357 (c)

Net weight (or volume), ounces (Variable Measure Trade Item)

n4+n6

NET VOLUME (oz)

360 (c)

Net volume, quarts (Variable Measure Trade Item)

n4+n6

NET VOLUME (q)

361 (c)

Net volume, gallons U.S. (Variable Measure Trade Item)

n4+n6

NET VOLUME (g)

362 (c)

Logistic volume, quarts

n4+n6

VOLUME (q), log

363 (c)

Logistic volume, gallons U.S.

n4+n6

VOLUME (g), log

364 (c)

Net volume, cubic inches (Variable Measure Trade Item)

n4+n6

VOLUME (i³), log

365 (c)

Net volume, cubic feet (Variable Measure Trade Item)

n4+n6

VOLUME (f³), log

366 (c)

Net volume, cubic yards (Variable Measure Trade Item)

n4+n6

VOLUME (y³), log

367 (c)

Logistic volume, cubic inches

n4+n6

VOLUME (q), log

368 (c)

Logistic volume, cubic feet

n4+n6

VOLUME (g), log

369 (c)

Logistic volume, cubic yards

n4+n6

VOLUME (i³), log

37

Count of Trade Items

n2+n..8

COUNT

390 (c)

Applicable Amount Payable, local currency

n4+n..15

AMOUNT

391 (c)

Applicable Amount Payable with ISO Currency Code

n4+n3+n..15

AMOUNT

392 (c)

Applicable Amount Payable, single monetary area (Variable Measure Trade Item)

n4+n..15

PRICE

393 (c)

Applicable Amount Payable with ISO Currency Code (Variable Measure Trade Item)

n4+n3+n..15

PRICE

400

Customer’s Purchase Order Number

n3+an..30

ORDER NUMBER

401

Consignment Number

n3+an..30

CONSIGNMENT

402

Shipment Identification Number

n3+n17

SHIPMENT NO.

403

Routing Code

n3+an..30

ROUTE

410

Ship to - Deliver to Global Location Number

n3+n13

SHIP TO LOC

411

Bill to - Invoice to Global Location Number

n3+n13

BILL TO

412

Purchased from Global Location Number

n3+n13

PURCHASE FROM

413

Ship for - Deliver for - Forward to Global Location Number

n3+n13

SHIP FOR LOC

414

Identification of a Physical Location Global Location Number

n3+n13

LOC No

415

Global Location Number of the Invoicing Party

n3+n13

PAY TO

420

Ship to - Deliver to Postal Code Within a Single Postal Authority

n3+an..20

SHIP TO POST

421

Ship to - Deliver to Postal Code with ISO Country Code

n3+n3+an..12

SHIP TO POST

422

Country of Origin of a Trade Item

n3+n3

ORIGIN

423

Country of Initial Processing

n3+n3+n..12

COUNTRY - INITIAL PROCESS.

424

Country of Processing

n3+n3

COUNTRY - PROCESS.

425

Country of Disassembly

n3+n3

COUNTRY - DISASSEMBLY

426

Country Covering full Process Chain

n3+n3

COUNTRY – FULL PROCESS

7001

NATO Stock Number (NSN)

n4+n13

NSN

7002

UN/ECE Meat Carcasses and Cuts Classification

n4+an..30

MEAT CUT

7003

Expiration Date and Time

n4+n10

EXPIRY TIME

703s

Approval Number of Processor with ISO Country Code

n4+n3+an..27

PROCESSOR # s

8001

Roll Products (Width, Length, Core Diameter, Direction, Splices)

n4+n14

DIMENSIONS

8002

Cellular Mobile Telephone Identifier

n4+an..20

CMT No

8003

Global Returnable Asset Identifier (GRAI)

n4+n14+an..1 6

GRAI

8004

Global Individual Asset Identifier (GIAI)

n4+an..30

GIAI

8005

Price Per Unit of Measure

n4+n6

PRICE PER UNIT

8006

Identification of the Components of a Trade Item

n4+n14+n2+n 2

GCTIN

8007

International Bank Account Number (IBAN)

n4+an..30

IBAN

8008

Date and Time of Production

n4+n8+n..4

PROD TIME

8018

Global Service Relation Number (GSRN)

n4+n18

GSRN

8020

Payment Slip Reference Number

n4+an..25

REF No

8100

GS1-128 Coupon Extended Code

n4+n6

-

8101

GS1-128 Coupon Extended Code

n4+n1+n5+n4

-

8102

GS1-128 Coupon Extended Code

n4+n1+n1

-

8110

Coupon Code Identification for Use in North America

n4+an..30

-

90

Information Mutually Agreed Between Trading Partners

n2+an..30

INTERNAL

91 to 99

Company Internal Information

n2+an..30

INTERNAL
