Exporting Numerous Charts to a PDF

Exporting many charts to one Portable Document Format (PDF) file is a common scenario. This walkthrough will show you how to:

export four charts to one PDF file
position the charts within the PDF file

Note	Note This topic assumes that you already created a chart. For information on how to create a chart, see Getting Started with Chart.

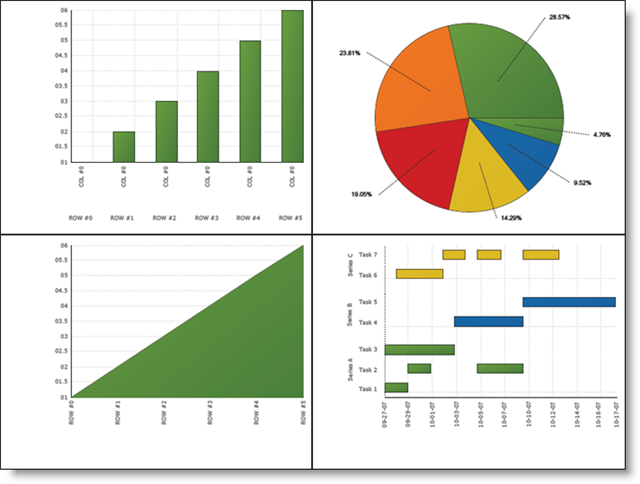

When you save and run your application after completing the following steps, your PDF should look similar to the following image:

Shows a screenshot of the PDF that has several charts exported to it

Export numerous charts to one PDF:

Add a reference to Infragistics4.Documents.Reports.v23.1 to your project.
Create the form’s Load event handler and add the following code to it.
Create a new report and add a page to it.

In Visual Basic:

Dim reportPath As String = _
    System.Environment.GetFolderPath( _
     System.Environment.SpecialFolder.MyDocuments)
UltraChart1.Size = New Size(400, 300)
Dim report As New Report()
Dim page As ISectionPage = report.AddSection().AddPage()
page.Width = 800
page.Height = 600

In C#:

string reportPath =
  System.Environment.GetFolderPath(System.Environment.SpecialFolder.MyDocuments);
ultraChart1.Size =  new Size(400, 300);
Report report = new Report();
ISectionPage page = report.AddSection().AddPage();
page.Width = 800;
page.Height = 600;

Create the first chart. Set the chartType to ColumnChart and bind it to an array of data.

In Visual Basic:

UltraChart1.ChartType = ChartType.ColumnChart
UltraChart1.Data.DataSource = New Integer() {1, 2, 3, 4, 5, 6}
UltraChart1.Data.DataBind()

In C#:

ultraChart1.ChartType = ChartType.ColumnChart;
ultraChart1.Data.DataSource = new int[] { 1, 2, 3, 4, 5, 6 };
ultraChart1.Data.DataBind();

Create a new canvas and render the column chart to the canvas graphics.

In Visual Basic:

Dim canvas As ICanvas = page.AddCanvas(0, 0)
canvas.Width = New FixedWidth(400)
canvas.Height = New FixedHeight(300)
Dim g As Graphics = canvas.CreateGraphics()
UltraChart1.RenderPdfFriendlyGraphics(g)

In C#:

ICanvas canvas = page.AddCanvas(0, 0);
canvas.Width = new FixedWidth(400);
canvas.Height = new FixedHeight(300);
Graphics g = canvas.CreateGraphics();
ultraChart1.RenderPdfFriendlyGraphics(g);

Create the second chart. Set the chartType to PieChart and bind it to an array of data.

In Visual Basic:

UltraChart1.ChartType = ChartType.PieChart
UltraChart1.Data.DataSource = New Integer() {1, 2, 3, 4, 5, 6}
UltraChart1.Data.DataBind()

In C#:

ultraChart1.ChartType = ChartType.PieChart;
ultraChart1.Data.DataSource = new int[] { 1, 2, 3, 4, 5, 6 };
ultraChart1.Data.DataBind();

Create another canvas at a different location and render the pie chart.

In Visual Basic:

canvas = page.AddCanvas(400, 0)
canvas.Width = New FixedWidth(400)
canvas.Height = New FixedHeight(300)
g = canvas.CreateGraphics()
UltraChart1.RenderPdfFriendlyGraphics(g)

In C#:

canvas = page.AddCanvas(400, 0);
canvas.Width = new FixedWidth(400);
canvas.Height = new FixedHeight(300);
g = canvas.CreateGraphics();
ultraChart1.RenderPdfFriendlyGraphics(g);

Create the third chart. Set the chartType to AreaChart and bind it to an array of data.

In Visual Basic:

UltraChart1.ChartType = ChartType.AreaChart
UltraChart1.Data.DataSource = New Integer() {1, 2, 3, 4, 5, 6}
UltraChart1.Data.SwapRowsAndColumns = True
UltraChart1.Data.DataBind()

In C#:

ultraChart1.ChartType = ChartType.AreaChart;
ultraChart1.Data.DataSource = new int[] { 1, 2, 3, 4, 5, 6 };
ultraChart1.Data.SwapRowsAndColumns = true;
ultraChart1.Data.DataBind();

Create another canvas at a different location and render the area chart.

In Visual Basic:

canvas = page.AddCanvas(0, 300)
canvas.Width = New FixedWidth(400)
canvas.Height = New FixedHeight(300)
g = canvas.CreateGraphics()
UltraChart1.RenderPdfFriendlyGraphics(g)

In C#:

canvas = page.AddCanvas(0, 300);
canvas.Width = new FixedWidth(400);
canvas.Height = new FixedHeight(300);
g = canvas.CreateGraphics();
ultraChart1.RenderPdfFriendlyGraphics(g);

Create the fourth chart. Set the chartType to GanttChart and bind it to a demo table of data.

In Visual Basic:

UltraChart1.ChartType = ChartType.GanttChart
UltraChart1.Data.SwapRowsAndColumns = False
UltraChart1.Data.DataSource = Infragistics.UltraChart.Data.DemoTable.Table(4)
UltraChart1.Data.DataBind()

In C#:

ultraChart1.ChartType = ChartType.GanttChart;
ultraChart1.Data.SwapRowsAndColumns = false;
ultraChart1.Data.DataSource = Infragistics.UltraChart.Data.DemoTable.Table(4);
ultraChart1.Data.DataBind();

Create another canvas at a different location and render the gantt chart.

In Visual Basic:

canvas = page.AddCanvas(400, 300)
canvas.Width = New FixedWidth(400)
canvas.Height = New FixedHeight(300)
g = canvas.CreateGraphics()
UltraChart1.RenderPdfFriendlyGraphics(g)

In C#:

canvas = page.AddCanvas(400, 300);
canvas.Width = new FixedWidth(400);
canvas.Height = new FixedHeight(300);
g = canvas.CreateGraphics();
ultraChart1.RenderPdfFriendlyGraphics(g);

Publish the report.

In Visual Basic:

report.Publish(reportPath + "\Report.pdf", FileFormat.PDF)

In C#:

report.Publish(reportPath + "\\Report.pdf", FileFormat.PDF);
