WinActivityIndicator Smart Tag

Beginning with Visual Studio 2005/2008 (.NET Framework 2.0/3.5), each Ultimate UI for Windows Forms control/component is equipped with a Smart Tag. By simply selecting the control/component, a Smart Tag anchor appears. When you click this anchor, a pop-up panel appears, providing you with quick and easy access to the most common properties and settings of the control/component.

The WinActivityIndicator™ Smart Tag contains the name of the control, as well as the following section:

  • Appearance – Provides common tasks involving the appearance, look, and feel of the control.

  • Behavior – Provides easy access to properties that govern how the control behaves on the form.

See below for a description of the item (e.g., field, drop-down list, checkbox) in each section, as well as the item’s corresponding property in the properties grid.

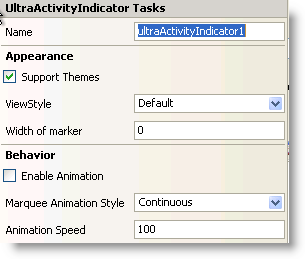

ultraActivityIndicator's smart tag
Appearance Description Corresponding Property

Support Themes

Select this check box to render the control using Microsoft OS themes.

ViewStyle

Select the style to be applied on the control

Width of Marker

Enter a value that decides the width of the marker when the control is in Marquee mode.
Behavior Description Corresponding Property

Enable Animation

Select this check box to start animation on the WinActivityIndicator control.

Marquee Animation Style

Choose between the continuous and bounce-back marquee animation styles.

Animation Speed

Choose the speed of the animation in milliseconds.
