Transform a StateButtonTool into a Checkbox

Prior to Ultimate UI for Windows Forms 2007 Volume 1, the only way to place a check box or option set on a toolbar was to use either the WinCheckEditor™ or WinOptionSet™ controls in a control container. On top of that, control containers weren’t even supported on the Ribbon. However, with one simple property, we’ve changed all that. Setting the new ToolbarDisplayStyle property to Glyph , you can transform any StateButtonTool into a CheckBox. The StateButtonTool already contains a Checked property, so the tool is ready to go with minimal effort.

The following code assumes that you already have a StateButtonTool in a Ribbon Group named 'stateButtonTool1'. See Add a Tool to a Ribbon Group for more information. The first line of code retrieves an instance of the previously created StateButtonTool. The second line of code forces the StateButtonTool to display a check box glyph rather than a state button.

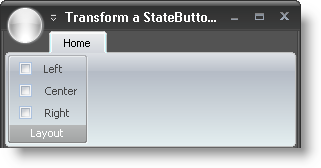

transform a statebutton tool into a checkbox

In Visual Basic:

Imports Infragistics.Win.UltraWinToolbars
...
Dim Left As StateButtonTool = _
  CType(Me.UltraToolbarsManager1.Ribbon.Tabs(0).Groups(0).Tools("Left"), _
  StateButtonTool)
Left.ToolbarDisplayStyle = StateButtonToolbarDisplayStyle.Glyph
Dim Center As StateButtonTool = _
  CType(Me.UltraToolbarsManager1.Ribbon.Tabs(0).Groups(0).Tools("Center"), _
  StateButtonTool)
Center.ToolbarDisplayStyle = StateButtonToolbarDisplayStyle.Glyph
Dim Right As StateButtonTool = _
  CType(Me.UltraToolbarsManager1.Ribbon.Tabs(0).Groups(0).Tools("Right"), _
  StateButtonTool)
Right.ToolbarDisplayStyle = StateButtonToolbarDisplayStyle.Glyph

In C#:

using Infragistics.Win.UltraWinToolbars;
...
StateButtonTool Left =
  this.ultraToolbarsManager1.Ribbon.Tabs[0].Groups[0].Tools["Left"]
  as StateButtonTool;
Left.ToolbarDisplayStyle = StateButtonToolbarDisplayStyle.Glyph;
StateButtonTool Center =
  this.ultraToolbarsManager1.Ribbon.Tabs[0].Groups[0].Tools["Center"]
  as StateButtonTool;
Center.ToolbarDisplayStyle = StateButtonToolbarDisplayStyle.Glyph;
StateButtonTool Right =
  this.ultraToolbarsManager1.Ribbon.Tabs[0].Groups[0].Tools["Right"]
  as StateButtonTool;
  Right.ToolbarDisplayStyle = StateButtonToolbarDisplayStyle.Glyph;
