xamRibbon - User Actions and Elements

Topic Overview

Purpose

This topic provides information about the xamRibbon™ control’s testable user actions and elements.

xamRibbon User Actions

Testable user action chart

The following table summarizes the control’s user action and maps it to the recordable methods that emulate the action.

User action Method

Launching the ribbon group’s dialog box.

Performing one of the following actionswithin an ApplicationMenu, QuickAccessToolbar(QAT) or a RibbonGroup of a selected tab:

  • Click

  • SelectValue

  • SetValue

  • Activate

  • DropDown

  • CloseUp

Clicking on the ribbon tab to select.

Toggling between adding and removing the tool to and from the QAT .

No right click action is recorded.

Toggling between minimizing and restoring the ribbon control.

No right click action is recorded.

Toggling between placing the QAT below or above the ribbon groups.

No right click action is recorded.

xamRibbon ToolPath Areas and Elements

Overview

ToolPath consists of several areas in xamRibbo n, each housing elements and items that can be recorded and inspected via UFT tool. More details about each ToolPath action are listed in subsequent sections with brief descriptions and screenshots outlining the affected areas or elements.

ApplicationMenu

The ApplicationMenu, illustrated below, is the top-left section of the xamRibbon control with a button to drop-down a menu with items and elements.

xamRibbon User Actions and Elements 1.png

ApplicationMenu2010

The ApplicationMenu2010 is the new style added to the release of 2013 volume 1 of the Ultimate UI for WPF xamRibbon with slightly different layout than the early ApplicationMenu .

It also features with drop-down button (top-left), which opens up its menu with recent items and elements.

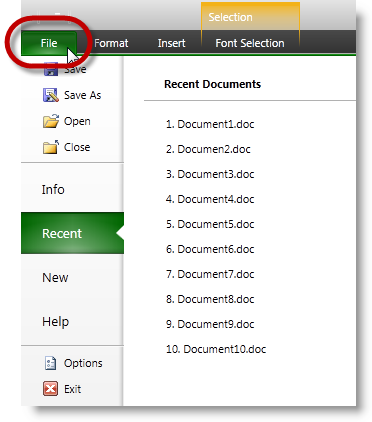

xamRibbon User Actions and Elements 2.png

ApplicationMenuLeftArea

This area may contain list of items and their contents which may consist of collection of items on their own. The items function as buttons responding to click events, or may simply be used for navigating to its items’ collection on the right pane of the menu.

ApplicationMenuLeftArea of the ApplicationMenu

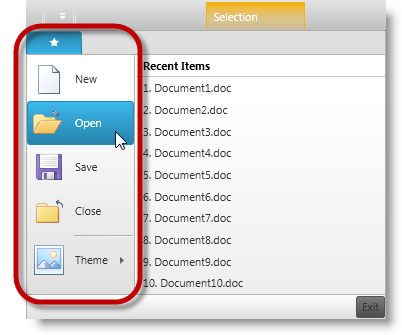

xamRibbon User Actions and Elements 3.png

Clicking the (Open) button in the ApplicationMenuLeftArea records the following script.WpfWindow("Window1").WpfMenu("WpfMenu").Select "Open" WpfWindow("Window1").XamRibbon("RibbonName").PerformToolAction Click, ARRAY("ApplicationMenuLeftArea", "Open")

ApplicationMenuLeftArea of the ApplicationMenu2010.

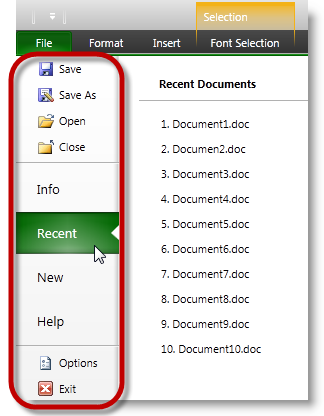

xamRibbon User Actions and Elements 4.png

Clicking the (Recent) menu tab in the ApplicationMenuSelectedTab area of the ApplicationMenuLeftArea records the following script.

WpfWindow("Window1").XamRibbon("RibbonName").PerformToolAction Click, ARRAY("ApplicationMenuLeftArea", "Recent")

ApplicationMenuRecentItems

There is a slight difference displaying recent items in ApplicationMenu compared to ApplicationMenu2010. When the recent items menu is defined, ApplicationMenu displays the recent items list (on the right) as soon as the menu drops down.

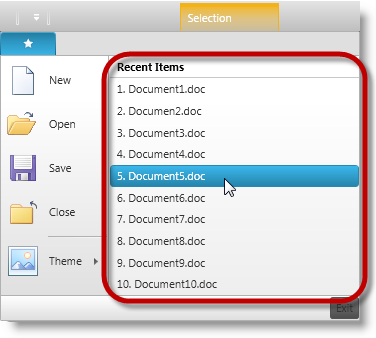

xamRibbon User Actions and Elements 5.png

ApplicaitonMenuFooterToolbar

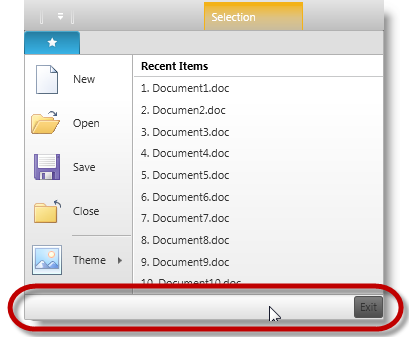

ApplicationMenuFooterToolbar, located at the bottom section of the dropped-down menu. This section is typically used as a button to exit out of and close the menu.

xamRibbon User Actions and Elements 6.png

ApplicationMenuSelectedTab

The following screenshot illustrates the ApplicationMenuSelectedTab area.

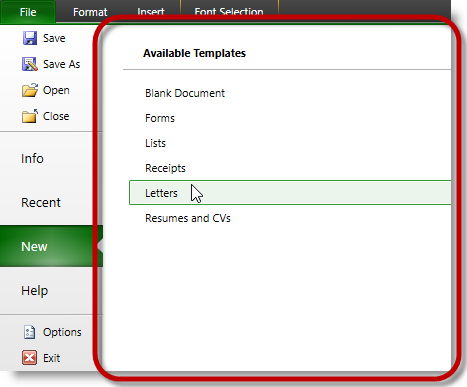

If an ApplicationMenu2010 Item (New) is clicked, its content is displayed in the ApplicationMenuSelectedTab area (on the right).

xamRibbon User Actions and Elements 7.png

QuickAccessToolbar

This area allows for quick access of the existing items. It is positioned above RibbonTabItems by default and has the option to show below the ribbon.

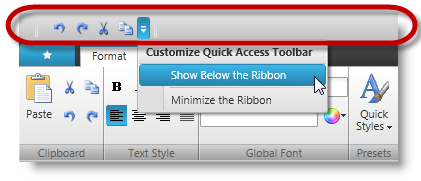

xamRibbon User Actions and Elements 8.png

QuickCustomizeMenu

This is the drop-down button that opens up the customizable menu with available options.

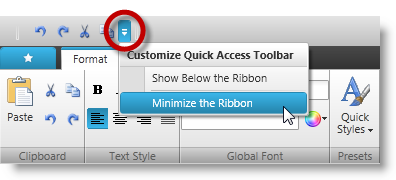

xamRibbon User Actions and Elements 9.png

RibbonGroup

The ribbon groups are defined within each ribbon tab, which may consist of tools for each category in RibbonGroup .

Clicking the “Button1” in “Menu3” drop-down of the RibbonGroup inside “IBM” tab will record the following script.

WpfWindow("Window1").XamRibbon("xamRibbon").PerformToolAction Click, ARRAY("RibbonGroup", "IBM", 0, "Menu3", "Button1")
xamRibbon User Actions and Elements 10.png

Clicking the “Button1” tool in “Group1” of the RibbonGroup will record the following script.

WpfWindow("Window1").XamRibbon("xamRibbon").PerformToolAction Click, ARRAY("RibbonGroup", "IBM", "Group1", "Button1")
xamRibbon User Actions and Elements 11.png
