Retrieving the Cell Text as Displayed in Excel (Infragistics Excel Engine)

Topic Overview

Purpose

This topic describes how to determine the text that would be displayed in Microsoft Excel® cell given the cell’s value, format string, column width, and worksheet options. You can determine the cell text using the WorksheetCell's GetText method.

Introduction

Text displayed in a cell depends on several factors, other than the actual cell value. Below is a summary of those factors:

Format string

The format string determines how the value of cell is converted to text and what literal character should be displayed with the formatted value. You can find more detailed information about format codes here.

Column Width

The amount of horizontal space available in a cell plays a big part in how the value is displayed to the user.

Displayed text can be different depending on varying column widths.

When displaying numbers and using format string containing “General” or “@”, there are various formats which are tried to find a formatting which fits the cell width.

Format Description

Normal Value

Number is displayed as it would be if there is unlimited amount of space.

Remove decimal digits

Decimal digits will be removed one at a time until a format is found which fits.

So a value of 12345.6789 will be reduced to the following formats until one fits: 12345.679, 12345.68, 12345.7, and 12346.

This will stop when the first significant digit is the only one left, so for example value like 0.0001234567890 can only be reduced to 0.0001.

Scientific, 5 decimal digits

Number is displayed in the form of 0.00000E+00, such as 1.23457E+09, or 1.23457E-04

Scientific, 4 decimal digits

Number is displayed in the form of 0.0000E+00, such as 1.2346E+09, or 1.23456E-04

Scientific, 3 decimal digits

Number is displayed in the form of 0.000E+00, such as 1.235E+09, or 1.235E-04

Scientific, 2 decimal digits

Number is displayed in the form of 0.00E+00, such as 1.23E+09, or 1.23E-04

Scientific, 1 decimal digits

Number is displayed in the form of 0.0E+00, such as 1.2E+09, or 1.2E-04

Scientific, 0 decimal digits

Number is displayed in the form of 0E+00, such as 1E+09, or 1E-04

Rounded value

If the first significant digit is in the decimal potion of the number, the value will be rounded to the nearest integer value.

So for a value 0.0001234567890, it will be rounded to 0, and the displayed text in cell will be 0.

Hash marks

If no condensed version of the number can be displayed, hashes (#) will be repeated through the width of the cell.

Empty string

If no hash marks can fit in the cell, an empty string will be returned as displayed cell text.

Note
Note:

If the format string for numeric value does not contain General or @, there are only the following stages of resizing: Normal value, Hash marks, Empty string

If a text is used in the cell, the cell displayed text will always be full value, regardless of whether it is cut off or not in the cell.

Note
Note:

The only time when this is not the case is when padding characters are used in format string. Then the value will be displayed as all hash marks when there is not enough room for the text.

Worksheet Options

You can set Worksheet.DisplayOptions ShowFormulasInCells property in code or in Microsoft Excel by: File -> Options -> Advanced -> Display options for this worksheet -> Show formulas in cells instead of their calculated results.

When this option is turned On, formulas are displayed in cells instead of their results, and format strings and cell widths are ignored. Text values display as if their format string were @ , non-integral numeric values display as if their format string were 0.0 and integral numeric values display as if their format string were 0 .

Additionally, if the value cannot fit, it will not display as all hashes. Display text will still return its full text as the cell text, even though it may not be fully seen.

GetText Method Overloads

Method overloads

The cell text is exposed by the WorksheetCell's GetText method. The parameter-less overload returns the cell text seen in the Microsoft Excel UI. The other overloads takes a TextFormatMode enumeration value, with the following values:

Property Description

AsDisplayed

This is equivalent to calling the parameter-less overload of GetText

IgnoreCellWidth

Formats the cell text without condensing it or including repeat padding characters.

Code Examples Overview

Overview

The following table lists the code examples included in this topic.

Example Description

GetText Depends on Format Strings Applied to Cell

Returns a textual representation of the WorksheetCell GetText methods depending on the format strings, applied on the cell.

GetText as it depends on column width

Returns a textual representation of the WorksheetCell GetText methods depending on the column width.

GetText as it depends on ShowFormulasInCell option

Returns a textual representation of the WorksheetCell GetText methods depending on the ShowFormulaInCells worksheet option.

Code Example: GetText Depends On Format Strings Applied to Cell

Description

The return value of the WorksheetCell GetText methods depends on format strings, applied to the cell.

The code in this example loads a Workbook and creates an instance of the Worksheet DifferentFormats. It access display text of cells in region A1:A8 using WorksheetCell GetText method.

Prerequisites

You need the following entities for the purposes of this example:

  • An Excel file named Book3.xlsx with a worksheet saved on your C hard drive, at C:\

  • Worksheet name set to DifferentFormats

Value 1234567890 in cells from A1 to A8. Each cell has a different cell formatting, as shown on screen-shot below.

Get Cell Text 1.png

Code

In Visual Basic:

' Load a Workbook
Dim workBook As Infragistics.Documents.Excel.Workbook = Infragistics.Documents.Excel.Workbook.Load("C:\Book3.xlsx")
Dim worksheet As Infragistics.Documents.Excel.Worksheet = workBook.Worksheets("DifferentFormats")
Dim sb As New StringBuilder()
' Loop over cells with different formats sets and show the GetText() method return values
Dim i As Integer = 0
While i < 8
    sb.AppendLine([String].Format("{0} " & vbTab & vbTab & " {1}", worksheet.Rows(i).Cells(1).GetText(), worksheet.Rows(i).Cells(0).GetText()))
    i += 1
End While
MessageBox.Show(sb.ToString())

In C#:

// Load a Workbook
Infragistics.Documents.Excel.Workbook workBook = Infragistics.Documents.Excel.Workbook.Load("C:\\Book3.xlsx");
Infragistics.Documents.Excel.Worksheet worksheet = workBook.Worksheets["DifferentFormats"];
StringBuilder sb = new StringBuilder();
// Loop over cells with different formats sets and show the GetText() method return values
for (int i = 0; i < 8; i++)
{
    sb.AppendLine(String.Format("{0} \t\t {1}",
        worksheet.Rows[i].Cells[1].GetText(),
        worksheet.Rows[i].Cells[0].GetText()));
}
MessageBox.Show(sb.ToString());

Code Example: GetText Depends On Column Width

Description

Returns the value of the WorksheetCell GetText methods depending on column width.

The code in this example loads a Workbook and creates an instance of the Worksheet DifferentWidths. It access display text of cells in region A1:E2 using WorksheetCell GetText method.

Prerequisites

You need the following entities for the purposes of this example:

  • An Excel file named Book3.xlsx with a worksheet saved on your C hard drive, at C:\

  • Worksheet name set to DifferentWidths

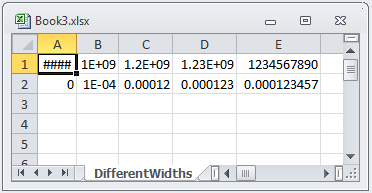

  • Value 1234567890 in cells from A1 to E1 and value 0.0001234567890 in cells A2 to E2. Column widths are different for each column, set as shown in the screenshot below.

Get Cell Text 2.png

Code

In Visual Basic:

' Load a Workbook
Dim workBook As Infragistics.Documents.Excel.Workbook = Infragistics.Documents.Excel.Workbook.Load("C:\Book3.xlsx")
Dim worksheet As Infragistics.Documents.Excel.Worksheet = workBook.Worksheets("DifferentWidths")
Dim sb As New StringBuilder()
' Loop over cells with different width sets and show the GetText() method return values
Dim i As Integer = 0
While i < 5
    sb.AppendLine([String].Format("{0} " & vbTab & vbTab & " {1}", worksheet.Rows(1).Cells(i).GetText(), worksheet.Rows(0).Cells(i).GetText()))
    i += 1
End While
MessageBox.Show(sb.ToString())

In C#:

// Load a Workbook
Infragistics.Documents.Excel.Workbook workBook = Infragistics.Documents.Excel.Workbook.Load("C:\\Book3.xlsx");
Infragistics.Documents.Excel.Worksheet worksheet = workBook.Worksheets["DifferentWidths"];
StringBuilder sb = new StringBuilder();
// Loop over cells with different width sets and show the GetText() method return values
for (int i = 0; i < 5; i++)
{
    sb.AppendLine(String.Format("{0} \t\t {1}",
        worksheet.Rows[1].Cells[i].GetText(),
        worksheet.Rows[0].Cells[i].GetText()));
}
MessageBox.Show(sb.ToString());

Code Example: GetText Depends On the ShowFormulasInCell Property

Description

Returns the value of the WorksheetCell GetText methods depending on the ShowFormulaInCells worksheet option.

The code in this example loads a Workbook and creates an instance of the Worksheet Formulas. Then, Worksheet property DisplayOptions ShowFormulaInCells property is set to true. The code accesses the displayed text of cells in region B1:B5 using GetText method.

Preview

The following screenshot is a preview of the final result.

Get Cell Text 3.png

Prerequisites

You need the following entities for the purposes of this example:

  • An Excel file named Book3.xlsx with a worksheet saved on your C hard drive

  • Worksheet name set to Formulas

  • Random numbers in cells A1:A5

  • Random functions in cells B1:B5.

Note
Note:

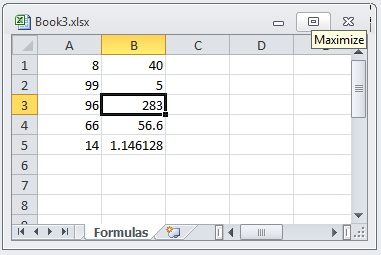

For this particular example “=A1*5”, “=COUNT(A1:A5)”, “=SUM(A1:A5)”, “=AVERAGE(A1:A5)”, and “=LOG(A5)” were used to produce the result on the screen-shot.

Get Cell Text 4.png

Code

In Visual Basic:

' Load a Workbook
Dim workBook As Infragistics.Documents.Excel.Workbook = Infragistics.Documents.Excel.Workbook.Load("C:\Book3.xlsx")
Dim worksheet As Infragistics.Documents.Excel.Worksheet = workBook.Worksheets("Formulas")
' Turn On Worksheet options for showing formulas instead of formula results
worksheet.DisplayOptions.ShowFormulasInCells = True
Dim sb As New StringBuilder()
' Loop over cells with different width sets and show the GetText() method return values
Dim i As Integer = 0
While i < 5
    sb.AppendLine(worksheet.Rows(i).Cells(1).GetText())
    i += 1
End While
MessageBox.Show(sb.ToString())

In C#:

// Load a Workbook
Infragistics.Documents.Excel.Workbook workBook = Infragistics.Documents.Excel.Workbook.Load("C:\\Book3.xlsx");
Infragistics.Documents.Excel.Worksheet worksheet = workBook.Worksheets["Formulas"];
// Turn On Worksheet options for showing formulas instead of formula results
worksheet.DisplayOptions.ShowFormulasInCells = true;
StringBuilder sb = new StringBuilder();
// Loop over cells with different width sets and show the GetText() method return values
for (int i = 0; i < 5; i++)
{
    sb.AppendLine(worksheet.Rows[i].Cells[1].GetText());
}
MessageBox.Show(sb.ToString());
