Configuring Axis Title Color Settings

Purpose

This topic explains how to configure the axis title background and foreground brush in the XamScatterSurface3D™ control.

Required background

The following topics are prerequisites to understanding this topic:

Topic Purpose

This topic provides detailed instructions to help you get up and running as soon as possible with the xamScatterSurface3D™ control.

This topic explains the features supported by the control from developer perspective.

This topic provides an overview of the visual elements of the control.

In this topic

This topic contains the following sections:

Configuring Axis Title Color Settings

Overview

Use the SurfaceChartAxis TitleBackground and TitleForeground properties to set the background and foreground color of the axis title text.

Property settings

The following table maps the desired configuration to the property settings that manage it.

In order to: Use this property: And set it to:

Customize the axis title background brush

Brush

Customize the axis title foreground brush

Brush

Example

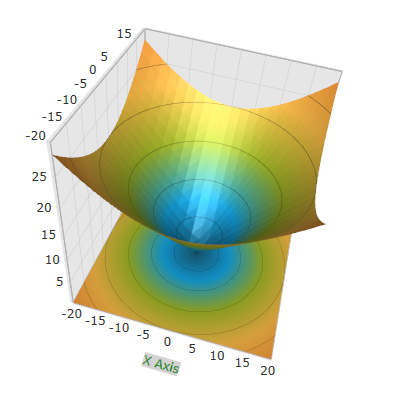

The screenshot below demonstrates how the axis title looks as a result of the following settings:

Property Value

LightGray

Green

Configuring Axis Title Color Settings 1.png

Following is the code that implements this example.

In XAML:

<ig:XamScatterSurface3D Name="SurfaceChart"
 ItemsSource="{Binding Path=DataCollection}"
 XMemberPath="X" YMemberPath="Y" ZMemberPath="Z" >
    <ig:XamScatterSurface3D.XAxis>
        <ig:LinearAxis
 Title="X Axis"
 TitleBackground="LightGray"
 TitleForeground="Green" />
    </ig:XamScatterSurface3D.XAxis>
</ig:XamScatterSurface3D>

In C#:

var linearAxis = new LinearAxis();
linearAxis.Title = "X Axis";
linearAxis.TitleBackground = new SolidColorBrush(Colors.LightGray);
linearAxis.TitleForeground = new SolidColorBrush(Colors.Green);
SurfaceChart.XAxis = linearAxis;

In Visual Basic:

Dim linearAxis = New LinearAxis()
linearAxis.Title = "X Axis"
linearAxis.TitleBackground = New SolidColorBrush(Colors.LightGray)
linearAxis.TitleForeground = New SolidColorBrush(Colors.Green)
SurfaceChart.XAxis = linearAxis
