This topic will walk you through, from the beginning, the necessary steps to create xamCarouselPanel™.
Create a Microsoft® Windows® Presentation Foundation Window or Page project.
Before you start writing any code, you should place using/Imports directives in your code-behind so you don’t need to always type out a member’s fully qualified name.
In XAML:
xmlns:igWindows="http://infragistics.com/Windows"
In Visual Basic:
Imports Infragistics.Windows.Controls
In C#:
using Infragistics.Windows.Controls;
If you are going to use the code-behind to add the xamCarouselPanel - create a method (explained later in this topic) that the form will call when loaded. In the opening Page or Window tag of the XAML file, place the following.
In XAML:
Loaded="Samp_Loaded"
Assign a name to the Page or Window’s Grid so it will be available for adding the xamCarouselPanel from code-behind.
In XAML:
<Grid Name="myGrid">
...
</Grid>
Add the xamCarouselPanel and images in it’s ChildElements collection either using XAML ot code-behind.
In XAML:
<Grid>
<igWindows:XamCarouselPanel x:Name="XamCarouselPanel1">
<Image Width="51" Height="51" Source="..\..\images\image1.png" />
<Image Width="51" Height="51" Source="..\..\images\image2.png" />
<Image Width="51" Height="51" Source="..\..\images\image3.png" />
<Image Width="51" Height="51" Source="..\..\images\image4.png" />
<Image Width="51" Height="51" Source="..\..\images\image5.png" />
<Image Width="51" Height="51" Source="..\..\images\image6.png" />
<Image Width="51" Height="51" Source="..\..\images\image7.png" />
<Image Width="51" Height="51" Source="..\..\images\image8.png" />
</igWindows:XamCarouselPanel>
</Grid>
In Visual Basic:
Sub Samp_Loaded(ByVal o As Object, ByVal e As RoutedEventArgs)
' Create an instance of XamCarouselPanel
Dim myxamCarouselPanel As New XamCarouselPanel()
' Supply it with a name
myxamCarouselPanel.Name = "XamCarouselPanel1"
' Create several instances of images and assign them to the
' XamCarouselPanel's ChildElements collection
Dim myImage1 As New Image()
myImage1.Height = 100
myImage1.Width = 100
Dim myBitmapImage1 As New BitmapImage()
myBitmapImage1.BeginInit()
Dim myUri1 As New Uri(App.Current.StartupUri.OriginalString.ToString() + _
"..\..\..\images\image1.png")
myBitmapImage1.UriSource = myUri1
myBitmapImage1.DecodePixelHeight = 100
myBitmapImage1.DecodePixelWidth = 100
myBitmapImage1.EndInit()
myImage1.Source = myBitmapImage1
myxamCarouselPanel.ChildElements.Add(myImage1)
Dim myImage2 As New Image()
myImage2.Height = 100
myImage2.Width = 100
Dim myBitmapImage2 As New BitmapImage()
myBitmapImage2.BeginInit()
Dim myUri2 As New Uri(App.Current.StartupUri.OriginalString.ToString() + _
"..\..\..\images\image2.png")
myBitmapImage2.UriSource = myUri2
myBitmapImage2.DecodePixelHeight = 100
myBitmapImage2.DecodePixelWidth = 100
myBitmapImage2.EndInit()
myImage2.Source = myBitmapImage2
myxamCarouselPanel.ChildElements.Add(myImage2)
Dim myImage3 As New Image()
myImage3.Height = 100
myImage3.Width = 100
Dim myBitmapImage3 As New BitmapImage()
myBitmapImage3.BeginInit()
Dim myUri3 As New Uri(App.Current.StartupUri.OriginalString.ToString() + _
"..\..\..\images\image3.png")
myBitmapImage3.UriSource = myUri3
myBitmapImage3.DecodePixelHeight = 100
myBitmapImage3.DecodePixelWidth = 100
myBitmapImage3.EndInit()
myImage3.Source = myBitmapImage3
myxamCarouselPanel.ChildElements.Add(myImage3)
' Add the newly created XamCarouselPanel to the Grid Panel's
' Children collection
myGrid.Children.Add(myxamCarouselPanel)
End Sub
In C#:
void Samp_Loaded(object o, RoutedEventArgs e)
{
// Create an instance of XamCarouselPanel
XamCarouselPanel myxamCarouselPanel
= new XamCarouselPanel();
// Supply it with a name
myxamCarouselPanel.Name = "XamCarouselPanel1";
// Create several instances of images and assign them to the
// XamCarouselPanel's ChildElements collection
Image myImage1 = new Image();
myImage1.Height = 51;
myImage1.Width = 51;
BitmapImage myBitmapImage1 = new BitmapImage();
myBitmapImage1.BeginInit();
myBitmapImage1.UriSource = new Uri(
Application.Current.StartupUri.OriginalString.ToString() +
@"..\..\images\image1.png");
myBitmapImage1.DecodePixelHeight = 51;
myBitmapImage1.DecodePixelWidth = 51;
myBitmapImage1.EndInit();
myImage1.Source = myBitmapImage1;
myxamCarouselPanel.ChildElements.Add(myImage1);
Image myImage2 = new Image();
myImage2.Height = 51;
myImage2.Width = 51;
BitmapImage myBitmapImage2 = new BitmapImage();
myBitmapImage2.BeginInit();
myBitmapImage2.UriSource = new Uri(
Application.Current.StartupUri.OriginalString.ToString() +
@"..\..\images\image2.png");
myBitmapImage2.DecodePixelHeight = 51;
myBitmapImage2.DecodePixelWidth = 51;
myBitmapImage2.EndInit();
myImage2.Source = myBitmapImage2;
myxamCarouselPanel.ChildElements.Add(myImage2);
Image myImage3 = new Image();
myImage3.Height = 51;
myImage3.Width = 51;
BitmapImage myBitmapImage3 = new BitmapImage();
myBitmapImage3.BeginInit();
myBitmapImage3.UriSource = new Uri(
Application.Current.StartupUri.OriginalString.ToString() +
@"..\..\images\image3.png");
myBitmapImage3.DecodePixelHeight = 51;
myBitmapImage3.DecodePixelWidth = 51;
myBitmapImage3.EndInit();
myImage3.Source = myBitmapImage3;
myxamCarouselPanel.ChildElements.Add(myImage3);
// Add the newly created XamCarouselPanel to the Grid Panel's
// Children collection
myGrid.Children.Add(myxamCarouselPanel);
}

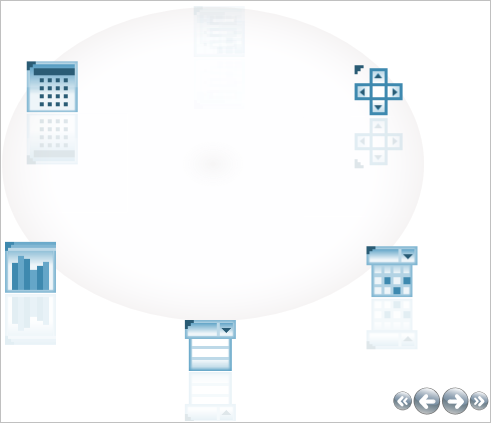

Build and run the project. You can change the number of items displayed at any one time by modifying the ItemsPerPage property. For more information on doing this, see Limiting the Number of Items Viewed on xamCarouselPanel’s Path.
