Adding xamDataCarousel to Your Page

This topic is designed to get you up and running as quickly as possible by describing the basic steps required for adding the xamDataCarousel™ control to a Page or Window.

  1. Add the following NuGet package to your application:

    • Infragistics.WPF.DataGrids

For more information on setting up the NuGet feed and adding NuGet packages, you can take a look at the following documentation: NuGet Feeds.

  1. Add a namespace declaration for xamDataCarousel.

In XAML:

xmlns:igDP="http://infragistics.com/DataPresenter"

In Visual Basic:

Imports Infragistics.Windows.DataPresenter

In C#:

using Infragistics.Windows.DataPresenter;
  1. Attach an event handler to the Window’s Loaded event if you are going to use the code-behind to.

In XAML:

<Window ... Loaded="Window_Loaded"  ... >
  1. Name the default Grid layout panel in the Window so that you can reference it in the code-behind.

In XAML:

<Grid Name="layoutRoot">
</Grid>
  1. Create an instance of xamDataCarousel and add it either through the XAML or code-behind using the Window_Loaded event handler. Set the BindToSampleData property to True. This will automatically populate xamDataCarousel with sample data so that you can preview the xamDataCarousel control without setting up a data source.

In XAML:

<igDP:XamDataCarousel Name="xamDataCarousel1" BindToSampleData="True" />

In Visual Basic:

xamDataCarousel1 = New XamDataCarousel()
' You can data bind your instance of xamDataCarousel instead
' of using the built in sample data
xamDataCarousel1.BindToSampleData = True
Me.layoutRoot.Children.Add(xamDataCarousel1)

In C#:

xamDataCarousel1 = new XamDataCarousel();
// You can data bind your instance of xamDataCarousel instead
// of using the built in sample data
xamDataCarousel1.BindToSampleData = true;
this.layoutRoot.Children.Add(xamDataCarousel1);

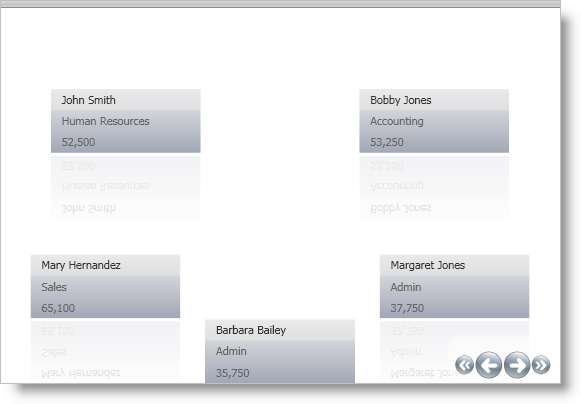

  1. Run the project to see the xamDataCarousel control populated with sample data.

creating xamdatacarousel in xaml
