Polar Line Series

This topic explains, with code examples, how to use Polar Line Series in the XamDataChart™ control.

Introduction

Polar Line Series is rendered using a collection of straight lines connecting data points. The PolarLineSeries uses the same concepts of data plotting as the ScatterLineSeries but wraps data points around a circle rather than stretching them along a horizontal line. Like with other series types, multiple PolarLineSeries can be plotted in the same data chart and they can be overlaid on each other to show differences and similarities between data sets. For more information on this group of series, refer to the Polar Series topic.

Preview

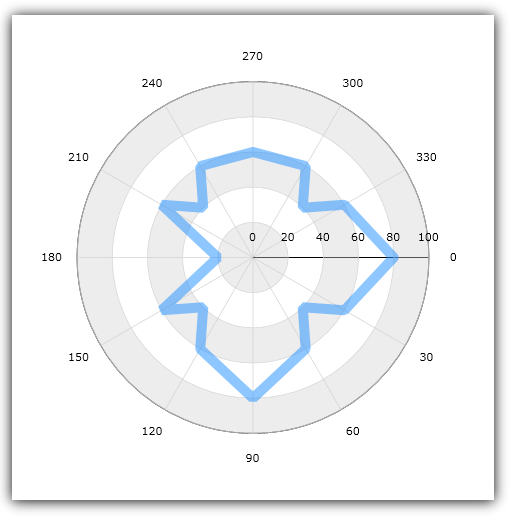

Figure 1 demonstrates what Polar Line Series looks like when plotted in the XamDataChart control.

xamDataChart Polar Line Series 01.png

Figure 1: Sample implementation of a PolarLineSeries

Data Binding

The code snippet below shows how to bind sample polar data (which is available for download from the Sample Polar Data resource) to the PolarLineSeries. The example assumes that you have already configured your project for the XamDataChart control.

In XAML:

xmlns:local="clr-namespace:Infragistics.Models;assembly=YourAppName"
...
<ig:XamDataChart x:Name="DataChart" >
    <ig:XamDataChart.Resources>
		<ResourceDictionary>
			<local:PolarDataSource x:Key="data" />
		</ResourceDictionary>
    </ig:XamDataChart.Resources>
    <ig:XamDataChart.Axes>
        <ig:NumericAngleAxis  x:Name="AngleAxis"  MinimumValue="0" MaximumValue="360" Interval="30"/>
        <ig:NumericRadiusAxis x:Name="RadiusAxis" MinimumValue="0" MaximumValue="100" Interval="20"/>
    </ig:XamDataChart.Axes>
    <ig:XamDataChart.Series>
        <ig:PolarLineSeries AngleAxis="{x:Reference AngleAxis}"
                            RadiusAxis="{x:Reference RadiusAxis}"
                            AngleMemberPath="Angle"
                            RadiusMemberPath="Radius"
                            ItemsSource="{StaticResource data}"
                            Thickness="5"
                            MarkerType="None"
                            Brush="#7F58A6C7">
        </ig:PolarLineSeries>
    </ig:XamDataChart.Series>
</ig:XamDataChart>

In C#:

var data = new PolarDataSource();
var AngleAxis = new NumericYAxis();
var RadiusAxis = new CategoryXAxis();

var series = new PolarLineSeries();
series.ItemsSource = data;
series.AngleMemberPath = "Angle";
series.RadiusMemberPath = "Radius";
series.AngleAxis = AngleAxis;
series.RadiusAxis = RadiusAxis;

var chart = new XamDataChart();
chart.Axes.Add(AngleAxis);
chart.Axes.Add(RadiusAxis);
chart.Series.Add(series);
