Defining an Application Menu 2010 (xamRibbon)

Topic Overview

Purpose

This topic provides systematic instructions on how to define an Application Menu 2010.

Required background

The following topics are prerequisites to understanding this topic:

Topic Purpose

Overview of the xamRibbon control

This topic provides step-by-step instruction how to add the control to your application and how to define tabs and groups

This topic explains the Application Menu 2010 and its behaviors in general.

In this topic

This topic contains the following sections:

Define an Application Menu 2010 in the xamRibbon control

Introduction

This procedure demonstrates adding a xamRibbon control to your page and defining an Application Menu 2010 therein.

Preview

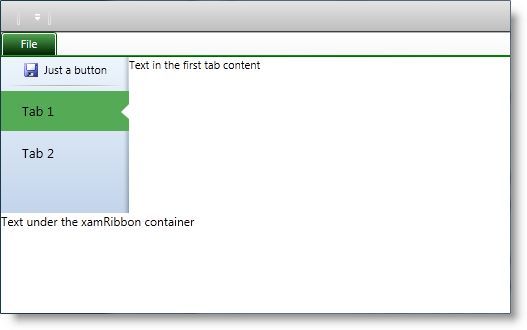

The following screenshot is a preview of the result.

xamRibbon DefiningAM2010.png

Prerequisites

To complete the procedure, you need the following:

  • Know how to add a xamRibbon control to you page

Overview

Following is a conceptual overview of the process:

  1. Add a xamRibbon control to your page

  2. Add an Application Menu 2010 to the xamRibbon control

  3. Add a button to the Application Menu 2010

  4. Add a separator to the Application Menu 2010

  5. Add two tabs to the Application Menu 2010

Steps

The following steps demonstrate how to define an Application Menu 2010.

1. Add the xamRibbon control to your page

Add the xamRibbon control to your page and set its ApplicationMenuMode property to Office2010 . To change the accent color, used by the Application Menu 2010, set the ApplicationAccentColor property.

For more information look at the Code Example: Add a xamRibbon

2. Add an Application Menu 2010 to the xamRibbon control

Create an instance of the ApplicationMenu2010 class and set it to the ApplicationMenu2010 property of the xamRibbon control. The ApplicationMenu2010 class is an ItemsControl derived class adding all of the buttons, tabs and separators to its Items collection.

For more information look at the Code Example: Add an Application Menu 2010

Note
Note

By default, the backstage fills all available space below the xamRibbon control’s tabs to the end of the parent Window. It is useful to specify another ancestor container for limiting the backstage size using the IsConstrainingElement property.

For more information please refer to the Code Example: Complete Code

3. Add a button to the Application Menu 2010

Create an instance of the ApplicationMenu2010Item class and add it to the Items collection of the ApplicationMenu2010 class instance created in the previous step. Being derived from HeaderedContentControl class, the ApplicationMenuItem class allowing you to set the Header and Image properties to customize your button.

For more information refer to the Code Example: Add a Button

Note
Note

If you set a value to the Content property, the item will render as a tab (and not as a button).

4. Add a separator to the Application Menu 2010

Create an instance of the ApplicationMenu2010Separator class (derived from the System.Windows.Controls.Separator class) and add it to the ApplicationMenu2010 class’ Items collection.

For more information look at the Code Example: Add a Separator

5. Add two tabs to the Application Menu 2010

Create two instances of the ApplicationMenu2010Item class and add them to the ApplicationMenu2010 class’ Items collection. Set a name to the tab using the Header property. Set the Content property of both tabs to a value of your choice. The content renders on the right side of the backstage.

For more information refer to the Code Example: Add a Tab

Note
Note

By default, the first added tab in the Items collection will be the one initially selected; however, you can use the InitialSelectedTabItem property to specify an initial tab of your choice.

Code Examples

Code examples summary

The following table lists the code examples included in this topic.

Example Description

Demonstrates adding the xamRibbon control to your page.

Demonstrates adding the Application Menu 2010 to the xamRibbon .

Demonstrates adding a button to the Application Menu 2010.

Demonstrates adding a separator to the Application Menu 2010.

Demonstrates adding a tab to the Application Menu 2010.

This is the complete code showing how to add an Application Menu 2010 with one button and two tabs.

Code Example: Add a xamRibbon

Description

Demonstrates adding the xamRibbon control to your page.

Code

In XAML:

<igRibbon:XamRibbon
    x:Name="myRibbon"
    Theme="IGTheme"
    ApplicationMenuMode="Office2010"
    ApplicationAccentColor="Green">
<!-- add Application Menu 2010 here -->
</igRibbon:XamRibbon>

Code Example: Add an Application Menu 2010

Description

Demonstrates adding the Application Menu 2010 to the xamRibbon .

Code

In XAML:

<igRibbon:XamRibbon.ApplicationMenu2010>
    <igRibbon:ApplicationMenu2010 Caption="File">
        <igRibbon:ApplicationMenu2010.Items>
        <!-- add buttons, tabs and separators here -->
        </igRibbon:ApplicationMenu2010.Items>
    </igRibbon:ApplicationMenu2010>
</igRibbon:XamRibbon.ApplicationMenu2010>

Code Example: Add a Button

Description

Demonstrates adding a button to the Application Menu 2010.

Code

In XAML:

<igRibbon:ApplicationMenu2010Item
    Image="/Ribbon.WPF;component/Images/Save_16x16.png">
    <igRibbon:ApplicationMenu2010Item.Header>
        <TextBlock Margin="5,0,0,0" Text="Just a button" />
    </igRibbon:ApplicationMenu2010Item.Header>
</igRibbon:ApplicationMenu2010Item>

Code Example: Add a Separator

Description

Demonstrates adding a separator to the Application Menu 2010.

Code

In XAML:

<igRibbon:ApplicationMenu2010Separator />

Code Example: Add a Tab

Description

Demonstrates adding a tab to the Application Menu 2010.

Code

In XAML:

<igRibbon:ApplicationMenu2010Item Header="Tab 1">
    <igRibbon:ApplicationMenu2010Item.Content>
        <TextBlock Text="Text in the first tab content" />
    </igRibbon:ApplicationMenu2010Item.Content>
</igRibbon:ApplicationMenu2010Item>

Code Example: Complete Code

Description

This is the complete code showing how to add an Application Menu 2010 with one button and two tabs.

Code

In XAML:

<Window x:Class="Ribbon.WPF.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:igRibbon="http://infragistics.com/Ribbon"
        Title="MainWindow" Height="350" Width="525">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="*" />
            <RowDefinition Height="100" />
        </Grid.RowDefinitions>
        <Grid Grid.Row="0"
            igRibbon:ApplicationMenu2010.IsConstrainingElement="True">
            <igRibbon:XamRibbon x:Name="myRibbon" Theme="IGTheme"
                ApplicationMenuMode="Office2010" ApplicationAccentColor="Green">
                <igRibbon:XamRibbon.ApplicationMenu2010>
                    <igRibbon:ApplicationMenu2010 Caption="File">
                        <igRibbon:ApplicationMenu2010.Items>
                            <igRibbon:ApplicationMenu2010Item
                            Image="/Ribbon.WPF;component/Images/Save_16x16.png">
                                <igRibbon:ApplicationMenu2010Item.Header>
                                    <TextBlock Margin="5,0,0,0"
                                        Text="Just a button" />
                                </igRibbon:ApplicationMenu2010Item.Header>
                            </igRibbon:ApplicationMenu2010Item>
                            <igRibbon:ApplicationMenu2010Separator />
                            <igRibbon:ApplicationMenu2010Item Header="Tab 1">
                                <igRibbon:ApplicationMenu2010Item.Content>
                                    <TextBlock
                                    Text="Text in the first tab content" />
                                </igRibbon:ApplicationMenu2010Item.Content>
                            </igRibbon:ApplicationMenu2010Item>
                            <igRibbon:ApplicationMenu2010Item Header="Tab 2">
                                <igRibbon:ApplicationMenu2010Item.Content>
                                    <TextBlock
                                    Text="Text in the second tab content" />
                                </igRibbon:ApplicationMenu2010Item.Content>
                            </igRibbon:ApplicationMenu2010Item>
                        </igRibbon:ApplicationMenu2010.Items>
                   </igRibbon:ApplicationMenu2010>
                </igRibbon:XamRibbon.ApplicationMenu2010>
            </igRibbon:XamRibbon>
        </Grid>
        <Grid Grid.Row="1">
            <TextBlock Text="Text under the xamRibbon container" />
        </Grid>
    </Grid>
</Window>
