Binding Open Street Maps

Before You Begin

The xamMap™ control’s MapTileSource property is used to configure the source from which geo-imagery is loaded. Please refer to the Supported Geo-Imagery section for a complete list of supported geo-imagery source. However this section will focus only on OpenStreetMap as the geo-imagery source. The Open Street Maps web mapping service is not licensed so you do not provide any license keys for it to work with the xamMap control.

What You Will Accomplish

You will add Open Street Maps as geo-imagery source to the xamMap control and set its world map coordinates.

xamMap Binding Open Street Maps 01.png

Follow These Steps

The following set of instructions assumes that you have already set up your WPF project for the xamMap control.

  1. Create a Microsoft® WPF® project.

  2. Add the following NuGet package reference to your project:

    • Infragistics.WPF.Controls.Maps.XamMap

    For more information on setting up the NuGet feed and adding NuGet packages, you can take a look at the following documentation: NuGet Feeds.

  1. Add the following namespaces declaration for the xamMap control.

In XAML:

xmlns:igMap="http://schemas.infragistics.com/xaml"

In Visual Basic:

Imports Infragistics.Controls.Maps
Imports Infragistics

In C#:

using Infragistics.Controls.Maps;
using Infragistics;
  1. Add the XamMap control with appropriate projection type

In XAML:

<igMap:XamMap x:Name="xamMap" >
        <!-- TODO: Add Open Street Maps as geo-imagery data source -->
</igMap:XamMap>
  1. Set the MapTileSource property to OpenStreetMapTileSource.

In XAML:

<igMap:XamMap.MapTileSource >
      <igMap:OpenStreetMapTileSource/>
</igMap:XamMap.MapTileSource>
  1. In code behind, add event handler for the User Control object’s Loaded event.

In Visual Basic:

Public Sub New()
        InitializeComponent()
        AddHandler Me.Loaded, AddressOf UserControl_Loaded
End Sub

In C#:

public MainPage()
{
      InitializeComponent();
      this.Loaded += new RoutedEventHandler(UserControl_Loaded);
}
  1. Implement the event handler for the UserControl’s Loaded event.

In Visual Basic:

Private Sub UserControl_Loaded(ByVal sender As System.Object, ByVal e As System.Windows.RoutedEventArgs)
        InitMapCoordinates()
End Sub

In C#:

private void UserControl_Loaded(object sender, RoutedEventArgs e)
{
        InitMapCoordinates();
}
  1. Add the following method to initialize the xamMap control’s world map coordinates.

In Visual Basic:

Private Sub InitMapCoordinates()
        ' Convert define world dimensions
        Dim worldTopLeft As Point = New Point(-180, 90)
        Dim worldBottomRight As Point = New Point(180, -90)
        ' Convert Geodetic to Cartesian coordinates
        Dim winTopLeft As Point = Me.xamMap.MapProjection.ProjectToMap(worldTopLeft)
        Dim winBottomRight As Point = Me.xamMap.MapProjection.ProjectToMap(worldBottomRight)
        ' Create Rect structure the map control's WindowRect and WorldRect
        Dim winRect As New Rect()
        winRect.X = Math.Min(winTopLeft.X, winBottomRight.X)
        winRect.Y = Math.Min(winTopLeft.Y, winBottomRight.Y)
        winRect.Width = Math.Abs(winTopLeft.X - winBottomRight.X)
        winRect.Height = Math.Abs(winTopLeft.Y - winBottomRight.Y)
        Me.xamMap.IsAutoWorldRect = False
        Me.xamMap.WindowZoomMaximum = 80
       ' Change the map control's WindowRect and WorldRect
        Me.xamMap.WorldRect = winRect
        Me.xamMap.WindowRect = winRect
End Sub

In C#:

private void InitMapCoordinates()
{
            // define world dimensions
            Point worldTopLeft = new Point(-180, 90);
            Point worldBottomRight = new Point(180, -90);
            // Convert Geodetic to Cartesian coordinates
            Point winTopLeft = this.xamMap.MapProjection.ProjectToMap(worldTopLeft);
            Point winBottomRight = this.xamMap.MapProjection.ProjectToMap(worldBottomRight);
            // Create Rect structure the map control's WindowRect and WorldRect
            Rect winRect = new Rect()
            {
                X = Math.Min(winTopLeft.X, winBottomRight.X),
                Y = Math.Min(winTopLeft.Y, winBottomRight.Y),
                Width = Math.Abs(winTopLeft.X - winBottomRight.X),
                Height = Math.Abs(winTopLeft.Y - winBottomRight.Y)
            };
            this.xamMap.IsAutoWorldRect = false;
            this.xamMap.WindowZoomMaximum = 80;
            // Change the map control's WindowRect and WorldRect
            this.xamMap.WindowRect = this.xamMap.WorldRect = winRect;
}

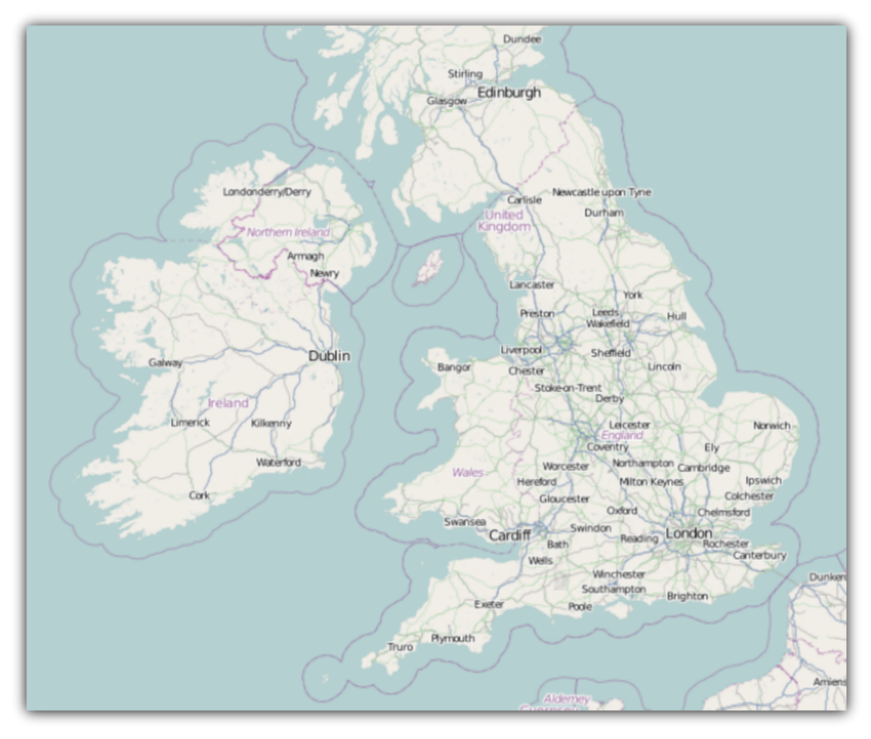

  1. Run the application. The xamMap control will load and display the geo-imagery data from Open Street Maps source. The following screenshot shows the result.

xamMap Binding Open Street Maps 01.png
