You can create custom classes for project columns, project tables and project views and use those classes to customize the appearance of your xamGantt ™ .
The following topics are prerequisites to understanding this topic:
This topic contains the following sections:
The code example shows you how to create custom project column classes, custom project table classes and custom project view classes. Then you can create a ListBackedProjectViewProvider in XAML and set its ColumnItemsSource, TableItemsSource and ViewItemsSource to the corresponding collections of those custom objects. The mapping between custom classes is made with ColumnPropertyMappings, TablePropertyMappings and ViewPropertyMappings properties of the ListBackedProjectViewProvider
.
Finally, the ViewProvider property of the xamGantt is set to the ListBackedProjectViewProvider
instance.
This code example includes a collection of sample custom tasks.
To complete the code example, you should have a xamGantt project. You can follow the instructions in Adding xamGantt to a Page in order to create a sample xamGantt project.
Then you need to modify the project. The following classes should be included in your project:
CustomProjectColumn
- To see the complete code for this class, please refer to the Custom Project Column Code Example.
CustomProjectTable
- To see the complete code for this class, please refer to the Custom Project Table Code Example.
CustomProjectView
- To see the complete code for this class, please refer to the Custom Project View Code Example.
You have to replace the mark-up and the ProjectViewModel
class with those ones shown in the code section.

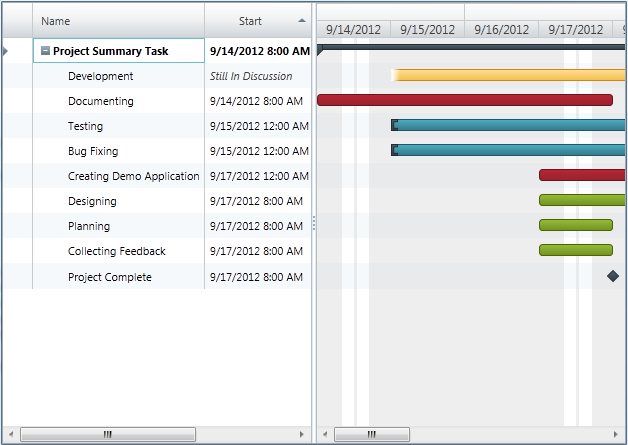

This is a preview of the completed sample project. The screen-shot is taken with the ViewKey="View01". This instance of the CustomProjectView
class with Id="View01"
sets the xamGantt to show critical tasks as well as the summary task. The column set is specified by the ColumnIds
property of the CustomProjectTable
class instance, used by the custom view.
In XAML:
<Grid>
<Grid.Resources>
<local:ProjectViewModel x:Key="dc" />
</Grid.Resources>
<Grid.DataContext>
<Binding Source="{StaticResource dc}" />
</Grid.DataContext>
<!-- ListBackedProjectViewProvider Setup-->
<ig:ListBackedProjectViewProvider x:Name="lbpViewProvider" ColumnItemsSource="{Binding Columns}"
TableItemsSource="{Binding Tables}" ViewItemsSource="{Binding CustomViews}">
<ig:ListBackedProjectViewProvider.ColumnPropertyMappings>
<ig:ProjectColumnPropertyMappingCollection UseDefaultMappings="True">
<ig:ProjectColumnPropertyMapping ColumnProperty="Id" DataObjectProperty="Id" />
</ig:ProjectColumnPropertyMappingCollection>
</ig:ListBackedProjectViewProvider.ColumnPropertyMappings>
<ig:ListBackedProjectViewProvider.TablePropertyMappings>
<ig:ProjectTablePropertyMappingCollection UseDefaultMappings="True" />
</ig:ListBackedProjectViewProvider.TablePropertyMappings>
<ig:ListBackedProjectViewProvider.ViewPropertyMappings>
<ig:ProjectViewPropertyMappingCollection UseDefaultMappings="True" />
</ig:ListBackedProjectViewProvider.ViewPropertyMappings>
</ig:ListBackedProjectViewProvider>
<ig:XamGantt x:Name="xamGantt" Grid.Row="0" Project="{Binding SampleProject}"
ViewProvider="{Binding ElementName=lbpViewProvider}" ViewKey="View01" />
</Grid>
In C#:
public class ProjectViewModel :
INotifyPropertyChanged
{
#region Private variables
private Project project;
private ObservableCollection<CustomProjectView> views;
private ObservableCollection<CustomProjectTable> tables;
private ObservableCollection<CustomProjectColumn> columns;
private CustomProjectView selectedView;
#endregion // Private variables
#region Public Properties
public Project SampleProject
{
get
{
if (project == null)
{
project = ProjectDataHelper.GenerateProjectData();
}
return project;
}
set
{
if (project != value)
{
project = value;
OnPropertyChanged("SampleProject");
}
}
}
public CustomProjectView SelectedView
{
get
{
return selectedView;
}
set
{
if (value != selectedView)
{
selectedView = value;
OnPropertyChanged("SelectedView");
}
}
}
public ObservableCollection<CustomProjectColumn> Columns
{
get
{
if (columns == null)
{
columns = GenerateColumns();
}
return columns;
}
}
public ObservableCollection<CustomProjectTable> Tables
{
get
{
if (tables == null)
{
tables = GenerateTables();
}
return tables;
}
set
{
if (tables != value)
{
tables = value;
}
}
}
public ObservableCollection<CustomProjectView> CustomViews
{
get
{
if (views == null)
{
views = GenerateViews();
}
return views;
}
set
{
if (views != value)
{
views = value;
OnPropertyChanged("CustomViews");
}
}
}
#endregion // Public properties
#region Private helpers
private ObservableCollection<CustomProjectColumn> GenerateColumns()
{
return new ObservableCollection<CustomProjectColumn>()
{
new CustomProjectColumn
{
Id = "idTaskName",
Key = "TaskName",
HeaderText = "Name"
},
new CustomProjectColumn
{
Id = "idStart",
Key = "ManualStart",
HeaderText = "Start",
HeaderTextHorizontalAlignment = "Center"
},
new CustomProjectColumn
{
Id = "idFinish",
Key = "ManualFinish",
HeaderText = "Finish",
HeaderTextHorizontalAlignment = "Center"
},
new CustomProjectColumn
{
Id = "idDuration",
Key = "ManualDuration",
HeaderText = "Duration"
},
new CustomProjectColumn
{
Id = "idPredecessors",
Key = "PredecessorsIdText",
HeaderText = "Predecessors"
},
new CustomProjectColumn
{
Id="idIsCritical",
Key = "IsCritical",
HeaderText = "Is Critical"
}
};
}
private ObservableCollection<CustomProjectTable> GenerateTables()
{
return new ObservableCollection<CustomProjectTable>()
{
new CustomProjectTable
{
Key = "Table01",
// Comma separated column ids, which are provided by the ProjectColumnProperty.DataItemId
property mapping
ColumnIds = "idTaskName, idStart, idDuration, idFinish, idPredecessors,
idIsCritical",
ShowInMenu = true
},
new CustomProjectTable
{
Key = "Table02",
ColumnIds = "idTaskName, idStart, idFinish, idIsCritical",
ShowInMenu = true
},
new CustomProjectTable
{
Key = "Table03",
ColumnIds = "idTaskName, idDuration, idPredecessors",
ShowInMenu = true
}
};
}
private ObservableCollection<CustomProjectView> GenerateViews()
{
return new ObservableCollection<CustomProjectView>()
{
new CustomProjectView
{
Key = "View01",
AreSummaryTasksVisible = true,
AreCriticalTasksHighlighted = true,
// Comma separated column keys, where each key can optionally be followed by 'Ascending' or
'Descending' word to indicate
// that the column should be sorted ascending or descending
SortedColumns = "ManualStart, ManualFinish:Descending",
IsOutlineStructurePreservedWhenSorting = true,
TableKey = "Table01",
NonWorkingTimeHighlightStyle = "ActualNonWorkingHours"
},
new CustomProjectView
{
Key = "View02",
TableKey = "Table02",
AreCriticalTasksHighlighted = false,
AreSummaryTasksVisible = false
},
new CustomProjectView
{
Key = "View03",
TableKey = "Table03",
AreCriticalTasksHighlighted = true
}
};
}
#endregion // Private helpers
#region INotifyPropertyChanged
public event PropertyChangedEventHandler PropertyChanged;
public void OnPropertyChanged(string
propertyName)
{
if (PropertyChanged != null)
{
PropertyChanged(this, new PropertyChangedEventArgs
(propertyName));
}
}
#endregion // INotifyPropertyChanged
}
In Visual Basic:
Public Class ProjectViewModel
Implements INotifyPropertyChanged
#Region "Private variables"
Private project As Project
Private views As ObservableCollection(Of CustomProjectView)
Private m_tables As ObservableCollection(Of CustomProjectTable)
Private m_columns As ObservableCollection(Of CustomProjectColumn)
Private m_selectedView As CustomProjectView
#End Region
#Region "Public Properties"
Public Property SampleProject() As
Project
Get
If project Is Nothing Then
project = ProjectDataHelper.GenerateProjectData()
End If
Return project
End Get
Set
If project <> value Then
project = value
OnPropertyChanged("SampleProject")
End If
End Set
End Property
Public Property SelectedView() As
CustomProjectView
Get
Return m_selectedView
End Get
Set
If value <> m_selectedView Then
m_selectedView = value
OnPropertyChanged("SelectedView")
End If
End Set
End Property
Public ReadOnly Property Columns() As ObservableCollection(Of CustomProjectColumn)
Get
If m_columns Is Nothing
Then
m_columns = GenerateColumns()
End If
Return m_columns
End Get
End Property
Public Property Tables() As
ObservableCollection(Of CustomProjectTable)
Get
If m_tables Is Nothing Then
m_tables = GenerateTables()
End If
Return m_tables
End Get
Set
If m_tables <> value Then
m_tables = value
End If
End Set
End Property
Public Property CustomViews() As
ObservableCollection(Of CustomProjectView)
Get
If views Is Nothing Then
views = GenerateViews()
End If
Return views
End Get
Set
If views <> value Then
views = value
OnPropertyChanged("CustomViews")
End If
End Set
End Property
#End Region
#Region "Private helpers"
Private Function GenerateColumns() As
ObservableCollection(Of CustomProjectColumn)
Return New ObservableCollection(Of CustomProjectColumn)() From
{ _
New CustomProjectColumn() With { _
Key .Id = "idTaskName", _
Key .Key = "TaskName", _
Key .HeaderText = "Name" _
}, _
New CustomProjectColumn() With { _
Key .Id = "idStart", _
Key .Key = "ManualStart", _
Key .HeaderText = "Start", _
Key .HeaderTextHorizontalAlignment = "Center" _
}, _
New CustomProjectColumn() With { _
Key .Id = "idFinish", _
Key .Key = "ManualFinish", _
Key .HeaderText = "Finish", _
Key .HeaderTextHorizontalAlignment = "Center" _
}, _
New CustomProjectColumn() With { _
Key .Id = "idDuration", _
Key .Key = "ManualDuration", _
Key .HeaderText = "Duration" _
}, _
New CustomProjectColumn() With { _
Key .Id = "idPredecessors", _
Key .Key = "PredecessorsIdText", _
Key .HeaderText = "Predecessors" _
}, _
New CustomProjectColumn() With { _
Key .Id = "idIsCritical", _
Key .Key = "IsCritical", _
Key .HeaderText = "Is Critical" _
} _
}
End Function
Private Function GenerateTables() As
ObservableCollection(Of CustomProjectTable)
' Comma separated column ids, which are provided by the
ProjectColumnProperty.DataItemId property mapping
Return New ObservableCollection(Of CustomProjectTable)() From {
_
New CustomProjectTable() With { _
Key .Key = "Table01", _
Key .ColumnIds = "idTaskName, idStart, idDuration, idFinish, idPredecessors,
idIsCritical", _
Key .ShowInMenu = True _
}, _
New CustomProjectTable() With { _
Key .Key = "Table02", _
Key .ColumnIds = "idTaskName, idStart, idFinish, idIsCritical", _
Key .ShowInMenu = True _
}, _
New CustomProjectTable() With { _
Key .Key = "Table03", _
Key .ColumnIds = "idTaskName, idDuration, idPredecessors", _
Key .ShowInMenu = True _
} _
}
End Function
Private Function GenerateViews() As
ObservableCollection(Of CustomProjectView)
' Comma separated column keys, where each key can optionally be followed by 'Ascending'
or 'Descending' word to indicate
' that the column should be sorted ascending or descending
Return New ObservableCollection(Of CustomProjectView)() From {
_
New CustomProjectView() With { _
Key .Key = "View01", _
Key .AreSummaryTasksVisible = True, _
Key .AreCriticalTasksHighlighted = True, _
Key .SortedColumns = "ManualStart, ManualFinish:Descending", _
Key .IsOutlineStructurePreservedWhenSorting = True, _
Key .TableKey = "Table01", _
Key .NonWorkingTimeHighlightStyle = "ActualNonWorkingHours" _
}, _
New CustomProjectView() With { _
Key .Key = "View02", _
Key .TableKey = "Table02", _
Key .AreCriticalTasksHighlighted = False, _
Key .AreSummaryTasksVisible = False _
}, _
New CustomProjectView() With { _
Key .Key = "View03", _
Key .TableKey = "Table03", _
Key .AreCriticalTasksHighlighted = True _
} _
}
End Function
#End Region
#Region "INotifyPropertyChanged"
Public Event PropertyChanged As
PropertyChangedEventHandler
Public Sub OnPropertyChanged(propertyName As String)
RaiseEvent PropertyChanged(Me, New
PropertyChangedEventArgs(propertyName))
End Sub
#End Region
End Class
