Chart Title and Subtitle

Topic Overview

Purpose

The title and subtitle feature of the XamShapeChart control allows you to add information to the top section of the chart.

When adding a title or subtitle to the chart control, the content of the chart automatically resizes, allowing for the title and subtitle information.

Required Background

The following topics are prerequisites to understanding this topic:

Topic	Purpose
XamShapeChart Overview	This topic provides conceptual information about the XamShapeChart control including its main features, minimum requirements, and user functionality.
Getting Started with XamShapeChart	This topic explains how to bind data to the XamShapeChart control.

In this topic

This topic contains the following sections:

Property Settings
Code Snippet
Related Content

Property Settings

You can customize the look and feel of the XamShapeChart control’s title and subtitle in many different ways, such as applying different font styles, margins, and alignment. This can be achieved by using the following properties:

Property Name	Property Type	Description
Title	`string`	Title’s text content.
TitleAlignment	`HorizontalAlignment`	Title’s horizontal alignment.
TitleFontFamily	`FontFamily`	Title’s font name.
TitleFontSize	`double`	Title’s font size
TitleFontStyle	`FontStyle`	Title’s font style such as italic.
TitleFontStretch	`FontStretch`	Title’s font stretch
TitleFontWeight	`FontWeight`	Title’s font weight such as bold.
TitleForeGround	`Brush`	Title’s text color.
TitleMargin	`Thickness`	Title’s margin.
Subtitle	`string`	Subtitle’s text content.
SubtitleForeground	`Brush`	Subtitle’s text color.
SubtitleFontFamily	`FontFamily`	Subtitle’s font name.
SubtitleFontSize	`double`	Subtitle’s text size.
SubtitleFontStyle	`FontStyle`	Subtitle’s font style such as italic.
SubtitleFontWeight	`FontWeight`	Subtitle’s font weight such as bold.
SubtitleAlignment	`HorizontalAlignment`	Subtitle’s horizontal alignment.
SubtitleMargin	`Thickness`	Subtitle’s margin.

Code Snippet

The following code examples show how to customize the title and subtitle in the XamShapeChart control. The following code examples use the Sample Scatter Data resource.

In XAML

<Grid x:Name="layoutRoot">
    <ig:XamShapeChart ItemsSource="{Binding}"
                      Title="Scatter Data"
                      TitleForeground="Red"
                      TitleFontFamily="Verdana"
                      TitleFontSize="24"
                      Subtitle="One Hundred Random Points"
                      SubtitleForeground="Red"
                      SubtitleFontFamily="Verdana"
                      SubtitleFontSize="16" />

</Grid>

In C#

var data = new ScatterDataSource();

var chart = new XamShapeChart();
chart.ItemsSource = data;
chart.Title = "Scatter Data";
chart.TitleForeground = Brushes.Red;
chart.TitleFontFamily = new FontFamily("Verdana");
chart.TitleFontSize = 24;
chart.Subtitle = "One Hundred Random Points";
chart.SubtitleForeground = Brushes.Red;
chart.SubtitleFontFamily = new FontFamily("Verdana");
chart.SubtitleFontSize = 16;

layoutRoot.Children.Add(chart);

In Visual Basic

Dim data = New ScatterDataSource()

Dim chart = New XamShapeChart()
chart.ItemsSource = data
chart.Title = "Scatter Data"
chart.TitleForeground = Brushes.Red
chart.TitleFontFamily = New FontFamily("Verdana")
chart.TitleFontSize = 24
chart.Subtitle = "One Hundred Random Points"
chart.SubtitleForeground = Brushes.Red
chart.SubtitleFontFamily = New FontFamily("Verdana")
chart.SubtitleFontSize = 16

layoutRoot.Children.Add(chart)

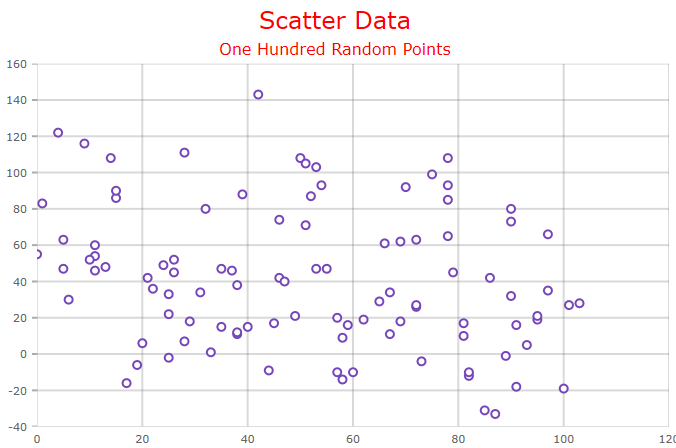

The above code will result in a XamShapeChart that looks like the following:
