<ig:XamFinancialChart x:Name="chart"
ItemsSource="{Binding}"
ApplyCustomIndicators="ApplyCustomIndicators" />
The XamFinancialChart control allows you to define custom financial indicators to display in the Indicator Pane.
This topic contains the following sections:
In the XamFinancialChart, you can enable custom financial indicators by adding names for them to the CustomIndicatorNames property and performing calculations for them in the ApplyCustomIndicators event.

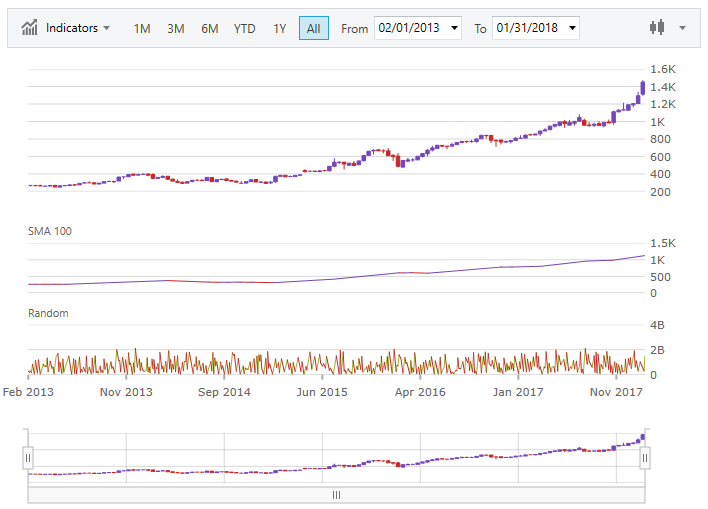

The following code example shows how to set up and calculate two custom indicators, one featuring the Simple Moving Average (SMA) and one displaying random values:
In XAML:
<ig:XamFinancialChart x:Name="chart"
ItemsSource="{Binding}"
ApplyCustomIndicators="ApplyCustomIndicators" />In C#:
public MainWindow()
{
InitializeComponent();
this.DataContext = new ViewModel();
var names = new ObservableCollection<string>();
names.Add("SMA 100");
names.Add("Random");
chart.CustomIndicatorNames = names;
}
private void ApplyCustomIndicators(object sender, FinancialChartCustomIndicatorArgs e)
{
var SMAValues = e.IndicatorInfo.SupportingCalculations.SMA.Strategy.Invoke(e.IndicatorInfo.DataSource.CloseColumn, 100);
int length = e.IndicatorInfo.DataSource.IndicatorColumn.Count;
switch (e.Index)
{
case 0:
for (int i = 0; i < length; i++)
e.IndicatorInfo.DataSource.IndicatorColumn[i] = SMAValues.ToList()[i];
break;
case 1:
Random rand = new Random();
for (int i = 0; i < length; i++)
e.IndicatorInfo.DataSource.IndicatorColumn[i] = rand.Next();
break;
}
}In Visual Basic:
Public Sub New()
MyBase.New()
InitializeComponent()
Me.DataContext = New ViewModel
Dim names = New ObservableCollection(Of String)
names.Add("SMA 100")
names.Add("Random")
chart.CustomIndicatorNames = names
End Sub
Private Sub ApplyCustomIndicators(ByVal sender As Object, ByVal e As FinancialChartCustomIndicatorArgs)
Dim SMAValues = e.IndicatorInfo.SupportingCalculations.SMA.Strategy.Invoke(e.IndicatorInfo.DataSource.CloseColumn, 100)
Dim length As Integer = e.IndicatorInfo.DataSource.IndicatorColumn.Count
Select Case (e.Index)
Case 0
Dim i As Integer = 0
Do While (i < length)
e.IndicatorInfo.DataSource.IndicatorColumn(i) = SMAValues.ToList(i)
i = (i + 1)
Loop
Case 1
Dim rand As Random = New Random
Dim i As Integer = 0
Do While (i < length)
e.IndicatorInfo.DataSource.IndicatorColumn(i) = rand.Next()
i = (i + 1)
Loop
End Select
End Sub
