Hierarchical Grid Load On Demand

    The Ignite UI for Angular IgxHierarchicalGrid allows fast rendering by requesting the minimum amount of data to be retrieved from the server so that the user can see the result in view and interact with the visible data as quickly as possible. Initially only the root grid’s data is retrieved and rendered, only after the user expands a row containing a child grid, he will receive the data for that particular child grid. This mechanism, also known as Load on Demand, can be easily configured to work with any remote data.

    This topic demonstrates how to configure Load on Demand by creating a Remote Service Provider that communicates with an already available remote oData v4 Service. Here's the working demo and later we will go through it step by step and describe the process of creating it.

    Angular Hierarchical Grid Load On Demand Example

    Remote Service Provider

    First we will prepare our service provider so we will be ready to get the data we would need for the hierarchical grid.

    Getting basic data

    We will be communicating with our backend service over HTTP protocol using the XMLHttpRequest interface the browsers provide. In order to achieve this more easily we will use Angular's HttpClient module that offers a simplified client HTTP API. That way in order to get our data we will need this simple method in our service:

    public getData(dataState): Observable<any[]> {
        return this.http.get(this.buildUrl(dataState)).pipe(
            map(response => response['value']),
        );
    }


    As you can see this.http will be a reference to our HttpCLient module, and buildUrl() will be the method that will generate our url based on the data that we have received. We map our response so we get only the value of our result and return an Observable, since this is executed asynchronously. That way we can later subscribe to it, process it further in our application and pass it to our grid.

    Building our request url

    Next we will define how we should build our URL for the GET request. This is where we will be able to get the data for our main grid but also for any child grid inside it. We will use the Customers data from here for our root level and use Order and Order_Details for the lower levels. The model will differ per application but we will use the following one:

    What we first need is the key of our table to determine from where to get the data for the desired grid, the primary key of the parent row and its unique ID. We will define all this in an interface called IDataState. An example:

    export interface IDataState {
        key: string;
        parentID: any;
        parentKey: string;
        rootLevel: boolean;
    }

    //...
    public buildUrl(dataState: IDataState): string {
        let qS = "";
        if (dataState) {
            qS += `${dataState.key}?`;

            if (!dataState.rootLevel) {
                if (typeof dataState.parentID === "string") {
                    qS += `$filter=${dataState.parentKey} eq '${dataState.parentID}'`;
                } else {
                    qS += `$filter=${dataState.parentKey} eq ${dataState.parentID}`;
                }
            }
        }
        return `${this.url}${qS}`;
    }
    //...


    Result

    Finally, this is how our remote-lod.service.ts would look like:

    import { HttpClient } from '@angular/common/http';
    import { Injectable } from '@angular/core';
    import { Observable } from 'rxjs';
    import { map } from 'rxjs/operators';

    export interface IDataState {
        key: string;
        parentID: any;
        parentKey: string;
        rootLevel: boolean;
    }

    @Injectable()
    export class RemoteLoDService {
        url = `https://services.odata.org/V4/Northwind/Northwind.svc/`;

        constructor(private http: HttpClient) { }

        public getData(dataState: IDataState): Observable<any[]> {
            return this.http.get(this.buildUrl(dataState)).pipe(
                map((response) => response['value'])
            );
        }

        public buildUrl(dataState: IDataState): string {
            let qS = "";
            if (dataState) {
                qS += `${dataState.key}?`;

                if (!dataState.rootLevel) {
                    if (typeof dataState.parentID === "string") {
                        qS += `$filter=${dataState.parentKey} eq '${dataState.parentID}'`;
                    } else {
                        qS += `$filter=${dataState.parentKey} eq ${dataState.parentID}`;
                    }
                }
            }
            return `${this.url}${qS}`;
        }
    }


    Hierarchical Grid Setup

    Next we will setup our hierarchical grid and connect it to our remote service provider.

    Template defining

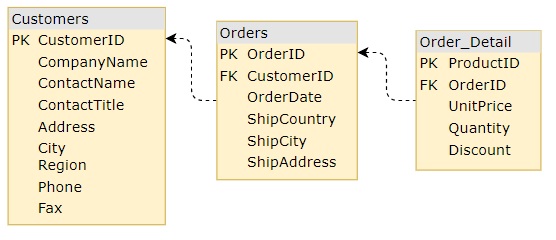

    First we will define our hierarchical grid template with the levels of hierarchy that we expect to have. We know that our root grid primaryKey for the customers is their CustomerID, for their orders on the first level - OrderID and respectively for order details - ProductID. Knowing each database table and their keys allows us to define our initial template:

    <igx-hierarchical-grid #hGrid [primaryKey]="'CustomerID'" [autoGenerate]="false" [height]="'600px'" [width]="'100%'">
        <igx-column field="CustomerID" [hidden]="true"></igx-column>
        <igx-column field="CompanyName"></igx-column>
        <igx-column field="ContactName"></igx-column>
        <igx-column field="ContactTitle"></igx-column>
        <igx-column field="Country"></igx-column>
        <igx-column field="Phone"></igx-column>
        <igx-row-island [key]="'Orders'" [primaryKey]="'OrderID'" [autoGenerate]="false" >
            <igx-column field="OrderID" [hidden]="true"></igx-column>
            <igx-column field="ShipCountry"></igx-column>
            <igx-column field="ShipCity"></igx-column>
            <igx-column field="ShipAddress"></igx-column>
            <igx-column field="OrderDate"></igx-column>
            <igx-row-island [key]="'Order_Details'" [primaryKey]="'ProductID'" [autoGenerate]="false" >
                <igx-column field="ProductID" [hidden]="true"></igx-column>
                <igx-column field="Quantity"></igx-column>
                <igx-column field="UnitPrice"></igx-column>
                <igx-column field="Discount"></igx-column>
            </igx-row-island>
        </igx-row-island>
    </igx-hierarchical-grid>


    There is one thing missing in our template though, and that is the data for our root level hierarchical grid, and eventually its children. We will easily set the data of the root grid after getting its data from the service in our code later, since we can use the #hGrid reference. Setting the data for any child that has been expanded is a bit different.

    When a row is expanded for the first time, a new child IgxHierarchicalGrid is rendered for it and we need to get the reference for the newly created grid to set its data. That is why each IgxRowIsland component provides the gridCreated event that is fired when a new child grid is created for that specific row island. We can use that to get the reference we need for the new grid, request its data from the service, and apply it.

    We can use one method for all row islands since we built our service so that it needs only information if it is the root level, the key of the row island, the primary key of the parent row, and its unique identifier. All this information can be accessed either directly from the event arguments, or from the row island responsible for triggering the event.

    Let's name the method that we will use gridCreated. Since the event gridCreated provides the parentID property, a reference to the row island as owner and the new child grid property, it will be passed as the first argument. We are only missing information about the parent row's primaryKey, but we can easily pass that as a second argument, depending on which row island we bind.

    The template file hierarchical-grid-lod.component.html, with these changes added, would look like this:

    <igx-hierarchical-grid #hGrid [primaryKey]="'CustomerID'" [autoGenerate]="false" [height]="'600px'" [width]="'100%'">
        <igx-column field="CustomerID" [hidden]="true"></igx-column>
        <igx-column field="CompanyName"></igx-column>
        <igx-column field="ContactName"></igx-column>
        <igx-column field="ContactTitle"></igx-column>
        <igx-column field="Country"></igx-column>
        <igx-column field="Phone"></igx-column>
        <igx-row-island [key]="'Orders'" [primaryKey]="'OrderID'" [autoGenerate]="false" (gridCreated)="gridCreated($event, 'CustomerID')">
            <igx-column field="OrderID" [hidden]="true"></igx-column>
            <igx-column field="ShipCountry"></igx-column>
            <igx-column field="ShipCity"></igx-column>
            <igx-column field="ShipAddress"></igx-column>
            <igx-column field="OrderDate"></igx-column>
            <igx-row-island [key]="'Order_Details'" [primaryKey]="'ProductID'" [autoGenerate]="false" (gridCreated)="gridCreated($event, 'OrderID')">
                <igx-column field="ProductID" [hidden]="true"></igx-column>
                <igx-column field="Quantity"></igx-column>
                <igx-column field="UnitPrice"></igx-column>
                <igx-column field="Discount"></igx-column>
            </igx-row-island>
        </igx-row-island>
    </igx-hierarchical-grid>


    Connecting our service

    One of our final steps now will be to connect our previously created service to our hierarchical grid. Since we defined it as an Injectable, we can pass it as a provider to our application. We will get a reference to our root grid as well, by using ViewChild query to set its data:

    @Component({
        providers: [RemoteLoDService],
        selector: "app-hierarchical-grid-lod",
        styleUrls: ["./hierarchical-grid-lod.component.scss"],
        templateUrl: "./hierarchical-grid-lod.component.html"
    })
    export class HierarchicalGridLoDSampleComponent {
        @ViewChild("hGrid")
        public hGrid: IgxHierarchicalGridComponent;

        constructor(private remoteService: RemoteLoDService) { }
    }


    In order to make sure that out grid is rendered before we request its data from the service and assign it, we will use the AfterViewInit lifecycle hook. As it doesn't have any parents we can only pass that rootLevel is true, and the key for it, to the getData of our service. Since it returns an observable we will need to subscribe to it:

    public ngAfterViewInit() {
        this.remoteService.getData({ parentID: null, rootLevel: true, key: "Customers" }).subscribe((data) => {
            this.hGrid.data = data;
            this.hGrid.cdr.detectChanges();
        });
    }


    Next, we only need to create our gridCreated method that will request data for any new child grid created. It will be similar to getting the root level grid data, just this time we will need to pass more information, like parentID and parentKey. rootLevel will be false for any child:

    public gridCreated(event: IGridCreatedEventArgs, _parentKey: string) {
        const dataState = {
            key: event.owner.key,
            parentID: event.parentID,
            parentKey: _parentKey,
            rootLevel: false
        };
        this.remoteService.getData(dataState).subscribe(
            (data) => {
                event.grid.data = data;
                event.grid.cdr.detectChanges();
            }
        );
    }


    With this, the setup of our application is almost done. This last step aims to improve the user experience by informing the user that the data is still loading so he doesn't have to look at an empty grid in the meantime. That's why the IgxHierarchicalGrid supports a loading indicator that can be displayed while the grid is empty. If new data is received, the loading indicator will hide and the data will be rendered.

    Setup of loading indication

    The IgxHierarchicalGrid can display a loading indicator by setting the isLoading property to true while there is no data. We need to set it initially for the root grid and also when creating new child grids, until their data is loaded. We could always set it to true in our template, but we want to hide it and display that the grid has no data if the service returns an empty array by setting it to false.

    In this case the final version of our hierarchical-grid-lod.component.ts would look like this:

    import { AfterViewInit, Component, ViewChild } from "@angular/core";
    import {
        IGridCreatedEventArgs,
        IgxHierarchicalGridComponent,
        IgxRowIslandComponent
    } from "igniteui-angular";
    import { RemoteLoDService } from "../services/remote-lod.service";

    @Component({
        providers: [RemoteLoDService],
        selector: "app-hierarchical-grid-lod",
        styleUrls: ["./hierarchical-grid-lod.component.scss"],
        templateUrl: "./hierarchical-grid-lod.component.html"
    })
    export class HierarchicalGridLoDSampleComponent implements AfterViewInit {
        @ViewChild("hGrid")
        public hGrid: IgxHierarchicalGridComponent;

        constructor(private remoteService: RemoteLoDService) { }

        public ngAfterViewInit() {
            this.hGrid.isLoading = true;
            this.remoteService.getData({ parentID: null, rootLevel: true, key: "Customers" }).subscribe((data) => {
                this.hGrid.isLoading = false;
                this.hGrid.data = data;
                this.hGrid.cdr.detectChanges();
            });
        }

        public gridCreated(event: IGridCreatedEventArgs, _parentKey: string) {
            const dataState = {
                key: event.owner.key,
                parentID: event.parentID,
                parentKey: _parentKey,
                rootLevel: false
            };
            event.grid.isLoading = true;
            this.remoteService.getData(dataState).subscribe(
                (data) => {
                    event.grid.isLoading = false;
                    event.grid.data = data;
                    event.grid.cdr.detectChanges();
                }
            );
        }
    }
