Version 1.0 (latest)

Grid View

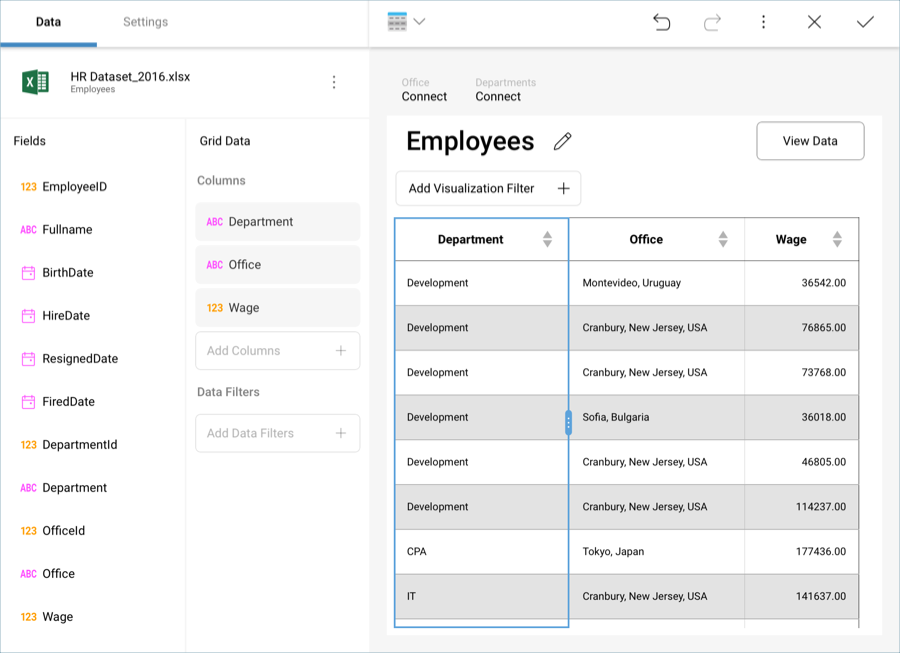

The grid view is the default visualization option for displaying data which presents the information in a matrix. You can resize the width of a column in the grid just by selecting on the grid header, which will highlight the column in the grid, and then dragging the resize handle in the column header. Slide it left or right to modify the column’s width.

GridViewSortingColumns_All

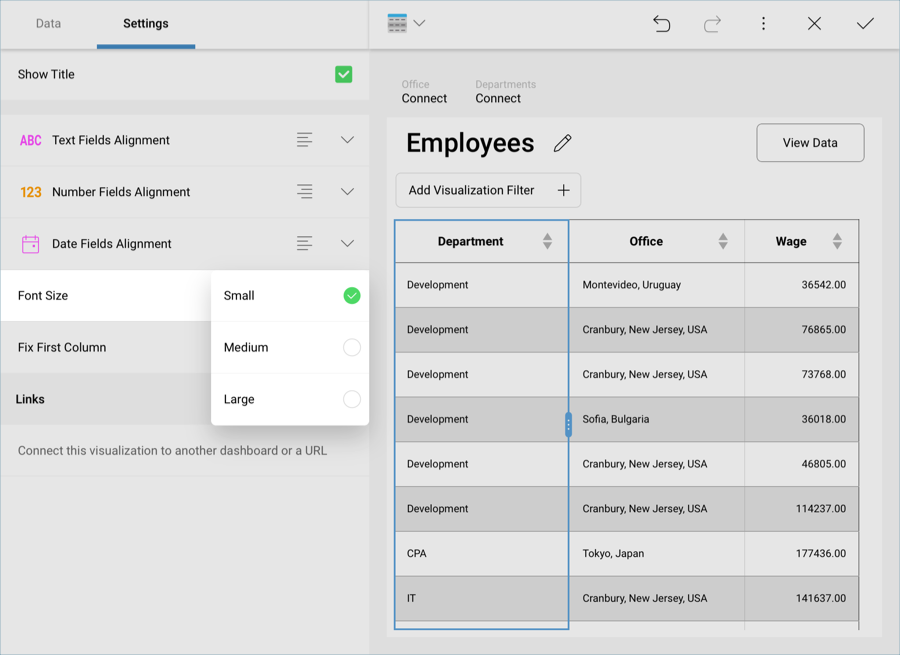

You can adjust the size of your font by going to the Settings section and choosing a different size; the default one is Small. The Medium size will increase the size by 2px, whereas Large will increase it by 4px.

fixfirstcolumn_all

You can also set the first column to be in a fixed position by checking the Fix First Column option under Settings. This is particularly useful whe working with many columns.

Note
NOTE

The grid view is suitable in a dashboard when the number of rows and columns is less than 10. When you’re dealing with small amounts of data, the preferred approach may be to "just show the numbers".

Column Sorting in View Mode

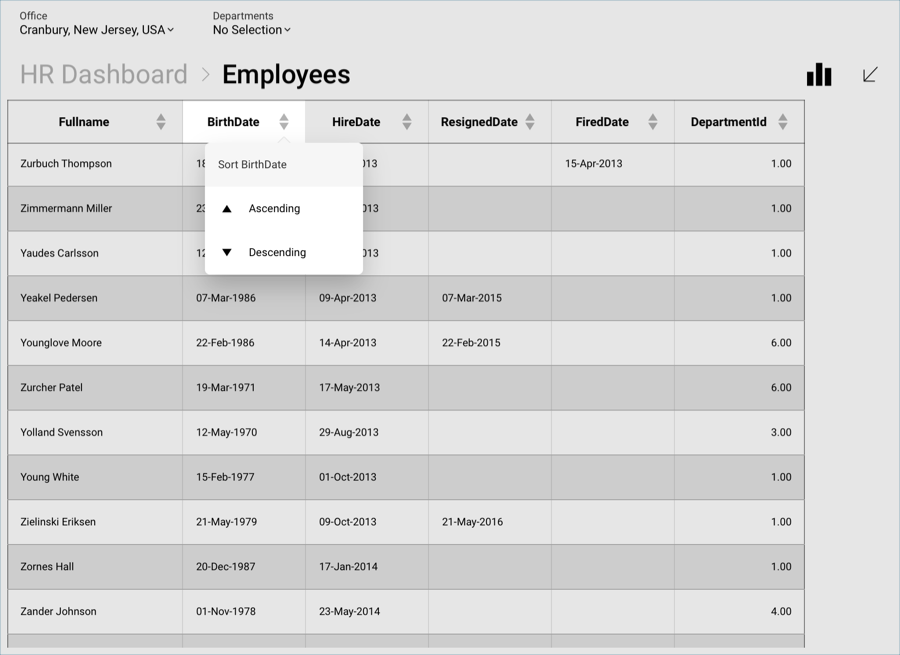

The grid view allows you to change the sorting of your columns (ascending or descending) in view mode . You can do so by selecting the arrows icon next to the column name.

GridViewSortingColumnsOptions_All

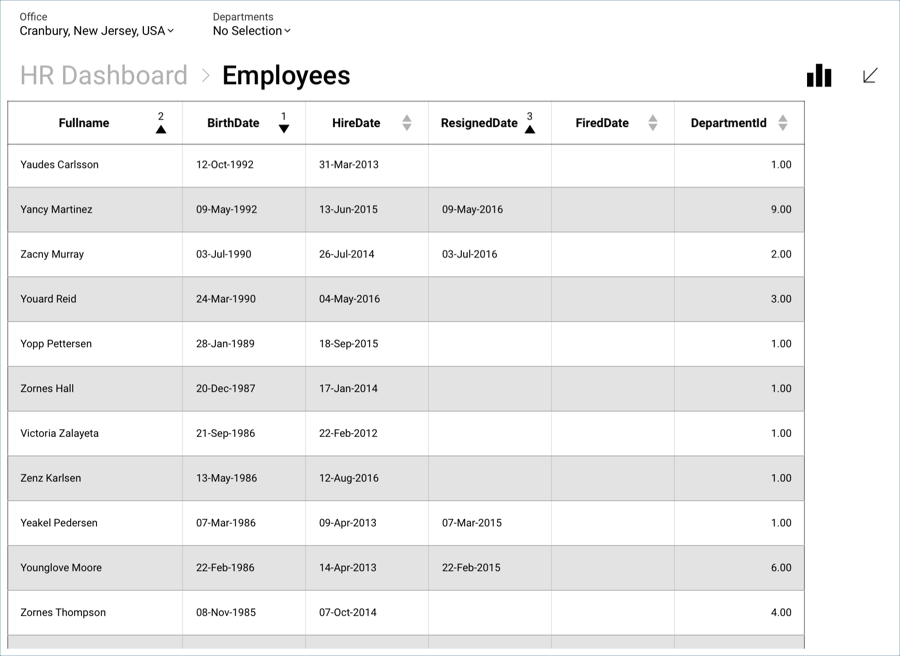

You can apply more than one sorting criteria; you will see small number icons appear next to the existing column headers. The direction of the arrow will help you determine whether you applied ascending or descending sorting in previous columns.

SortingViewAllNumbers_All

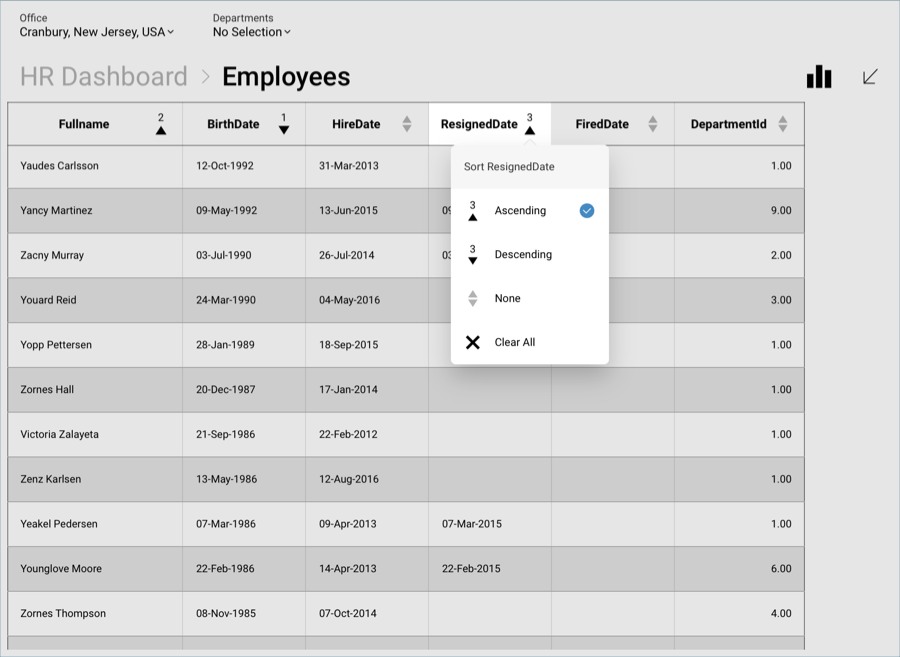

You can also choose to remove any existing sorting options you have entered with the "None" or "Clear All" options. If any other sorting options remain, the order in which they will be applied will be determined by the number next to the column header.

SortingViewMode_Remove_All
